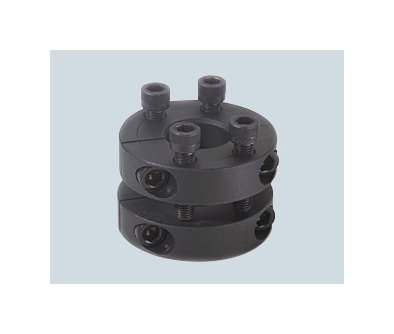

The Steel Axial Thrust Assembly is a versatile solution for imparting high axial force to shaft-mounted components. It features two steel two-piece collars that allow for precise positioning along the shaft to move parts without causing damage. With a maximum axial displacement of 0.750 inches and a thrust capacity ranging from 5,000 to 8,000 lbs., this assembly is ideal for removing shrink-fit or frozen parts. The stationary collar with alloy thrust screws ensures secure and damage-free pushing without harming face or bearing seals. Made in the USA, this assembly is RoHS2 and REACH compliant.
Product Specifications
Dimensional Attributes Fixed Collar Id
2-1/4 in
Dimensional Attributes Fixed Collar Width
0.750 in
Dimensional Attributes Maximum Axial Displacement
0.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
3/8-24 x 1
Dimensional Attributes Slide Collar Id
2-1/4 in
Dimensional Attributes Slide Collar Width
0.750 in
Specifications Alloy
1215
Specifications Approximate Weight
3.12 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
ATA0204
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786027963
