Steel Axial Thrust Assembly
Steel Axial Thrust Assembly
SKU:ROU-115fba
Achieve precise axial force control with the Steel Axial Thrust Assembly, ideal for moving shrink-fit or frozen parts efficiently. RoHS2 and REACH compliant.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Steel Axial Thrust Assembly
$179.99
Quantity: 1
Claim Your Seller Account
Steel Axial Thrust Assembly
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

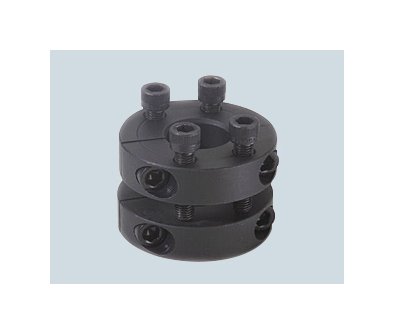

The Steel Axial Thrust Assembly is a versatile solution for precise axial force control, perfect for moving shrink-fit or frozen parts without causing damage. This assembly, comprised of two steel two-piece collars, offers high axial force capabilities ranging from 5,000 to 8,000 lbs. It can be conveniently positioned anywhere along a shaft, ensuring the protection of face and bearing seals. The stationary collar features four alloy thrust screws that securely push the part without risking seal integrity. This product, RoHS2 and REACH compliant, is designed for durability and ease of use, making it an essential tool for various industrial applications.
Product Specifications
Dimensional Attributes Fixed Collar Id
1-3/4 in
Dimensional Attributes Fixed Collar Width
0.750 in
Dimensional Attributes Maximum Axial Displacement
0.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
3/8-24 x 1
Dimensional Attributes Slide Collar Id
1-3/4 in
Dimensional Attributes Slide Collar Width
0.750 in
Specifications Alloy
1215
Specifications Approximate Weight
2.59 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
ATA0112
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786027949
