Steel Axial Thrust Assembly Kit
Steel Axial Thrust Assembly Kit
SKU:ROU-680576
Move parts efficiently while protecting shafts and components with the Steel Axial Thrust Assembly Kit. Offers high axial force and precise positioning capabilities.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Steel Axial Thrust Assembly Kit
$129.99
Quantity: 1
Claim Your Seller Account
Steel Axial Thrust Assembly Kit
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

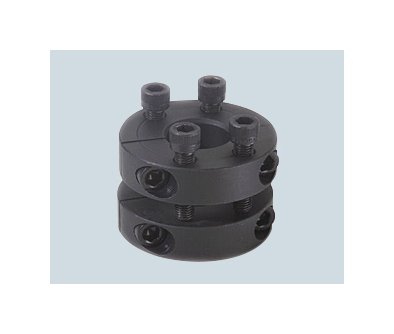

The Steel Axial Thrust Assembly Kit is designed to efficiently move parts along shafts without causing damage. With a high axial force capacity, it is perfect for handling shrink-fit and frozen components. This kit, comprising two steel two-piece collars, allows for versatile positioning along the shaft without the need for hammers, ensuring the protection of both the shaft and the component being moved. Equipped with alloy thrust screws, this assembly can deliver 5,000 to 8,000 lbs. of thrust, depending on size, while safeguarding face and bearing seals from harm. Made in the USA from RoHS2 and REACH compliant materials, this kit is a reliable solution for various industrial applications.
Product Specifications
Dimensional Attributes Fixed Collar Id
1-1/2 in
Dimensional Attributes Fixed Collar Width
0.625 in
Dimensional Attributes Maximum Axial Displacement
0.875 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
5/16-24 x 1
Dimensional Attributes Slide Collar Id
1-1/2 in
Dimensional Attributes Slide Collar Width
0.625 in
Specifications Alloy
1215
Specifications Approximate Weight
1.56 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
ATA0108
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786027932
