Steel Axial Thrust Assembly - Shaft Collar Solution
Steel Axial Thrust Assembly - Shaft Collar Solution
SKU:ROU-13af14
Efficiently move parts along shafts without damage with this Steel Axial Thrust Assembly. RoHS2 and REACH compliant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Steel Axial Thrust Assembly - Shaft Collar Solution
$129.99
Quantity: 1
Claim Your Seller Account
Steel Axial Thrust Assembly - Shaft Collar Solution
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

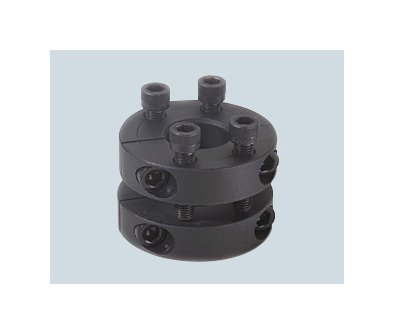

The Steel Axial Thrust Assembly offers a solution for efficiently moving shrink-fit and frozen parts along shafts without causing damage. Made of durable steel with a black oxide finish, this assembly consists of two collars, one stationary and one sliding, equipped with alloy thrust screws for precise movement and protection of face and bearing seals. With a high axial force of 5,000 to 8,000 lbs., it can be easily repositioned along the shaft for versatile applications. RoHS2 and REACH compliant, this assembly ensures quality and regulatory adherence.
Product Specifications
Dimensional Attributes Fixed Collar Id
1-1/4 in
Dimensional Attributes Fixed Collar Width
0.625 in
Dimensional Attributes Maximum Axial Displacement
0.875 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
5/16-24 x 1
Dimensional Attributes Slide Collar Id
1-1/4 in
Dimensional Attributes Slide Collar Width
0.625 in
Specifications Alloy
1215
Specifications Approximate Weight
1.40 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
ATA0104
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786027925
