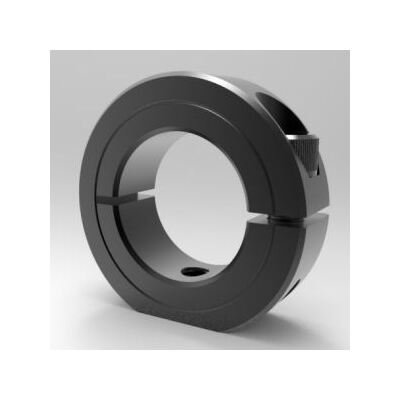

Steel Clamp-Type Shaft Mounting Collar
Steel Clamp-Type Shaft Mounting Collar
SKU:FLA-d87ad0
Precision machined Steel Shaft Mounting Collar for secure and non-marring shaft mounting, easy adjustment, and high clamping power. RoHS2 and REACH compliant, USA-made.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Steel Clamp-Type Shaft Mounting Collar
$12.99
Quantity: 1
Claim Your Seller Account
Steel Clamp-Type Shaft Mounting Collar
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Steel Clamp-Type Shaft Mounting Collar is ideal for securely mounting round shafts or thin-wall tubes with precision machined features. This one-piece split collar offers high clamping power, easy adjustment, and non-marring protection. With a low profile design and black oxide finish, it ensures durability and a sleek appearance. RoHS2 and REACH compliant, made in the USA.
Product Specifications
Dimensional Attributes Bore Size
3/4 in
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
1.406 in
Dimensional Attributes Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.17 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
19L012MT
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026539
