Steel End Caps for LDZ Air Cylinders
Steel End Caps for LDZ Air Cylinders
SKU:AIR-92b858
Enhance LDZ Air Cylinders with high-quality steel end caps for precise coolant or air delivery.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Steel End Caps for LDZ Air Cylinders
$29.99
Quantity: 1
Claim Your Seller Account
Steel End Caps for LDZ Air Cylinders
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

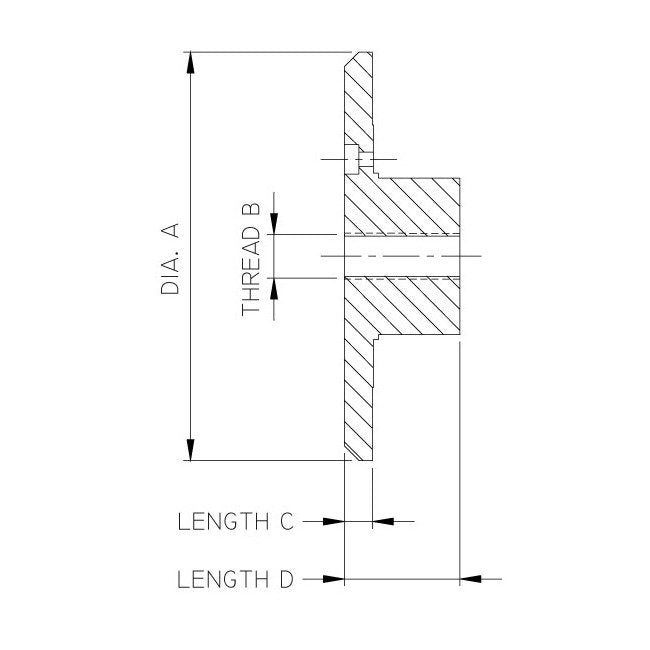

Upgrade your LDZ Air Cylinder with these steel end caps for rotary unions. Made with precision, these end caps feature a threaded hole to easily mount a pipe for delivering coolant or air to your workholding fixture. With dimensions A: 3.500 in, B: 3/8" - 32 UNEF, C: 1.000 in, D: .250 in, these end caps ensure efficient operation and durability.
Product Specifications
Specifications A Dimension
3.500 in | 88.9 mm
Specifications B Dimension
3/8" - 32 UNEF
Specifications C Dimension
1.000 in | 25.4 mm
Specifications D Dimension
.250 in | 6.4 mm
Specifications Item No
33 060 073
