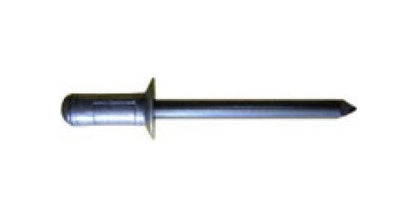

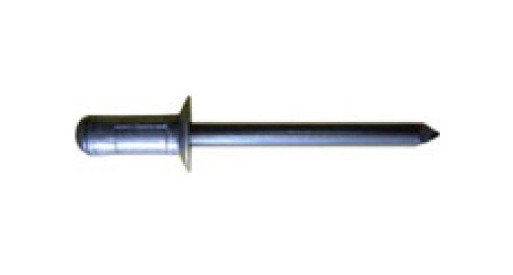

Steel-Fix All Steel 11.0mm 120° Countersunk Head Rivet
Steel-Fix All Steel 11.0mm 120° Countersunk Head Rivet
SKU:STE-3ee331
High-strength 11.0mm steel rivet with 120° countersunk head for trailers & automotive applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Steel-Fix All Steel 11.0mm 120° Countersunk Head Rivet
$89.99
Quantity: 1
Claim Your Seller Account
Steel-Fix All Steel 11.0mm 120° Countersunk Head Rivet
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Steel-Fix All Steel 11.0mm 120° Countersunk Head Rivet is a high-strength fastener designed for structural applications, with a wide grip range making it ideal for trailer tail rear & front frames. Made of low carbon steel with a zinc-plated chromium VI-free finish, it ensures durability and corrosion resistance. With a nominal shear force of 450 kgf and a nominal tensile force of 390 kgf, this rivet provides a secure and vibration-resistant joint. Its tailored solution for automotive applications, like window frames, meets the stringent requirements of leading American vehicle manufacturers.
Product Specifications
Applications Automotive Application
Window FrameThe Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
Nominal Dimensions Body Length
11.0 mm | 0.433 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
8.65 mm | 0.341 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
6.0 mm | 0.236 in
Nominal Dimensions Minimum Grip Range
2.5 mm | 0.098 in
Nominal Forces Nominal Shear Force
450 kgf | 990 lbf
Nominal Forces Nominal Tensile Force
390 kgf | 858 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Steel-Fix
Technical Specs Carton Quantity
5000
Technical Specs Head Style
120 Degree Countersunk
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
