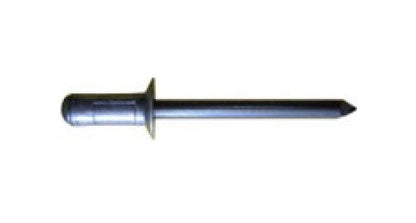

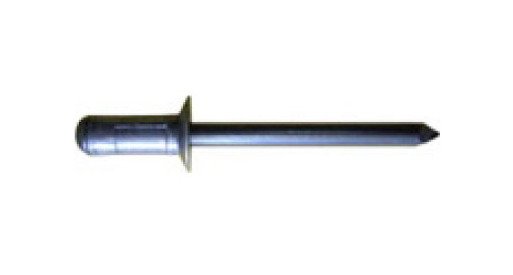

Steel-Fix All Steel 120° Countersunk Head Rivet - 14.0mm Body Length
Steel-Fix All Steel 120° Countersunk Head Rivet - 14.0mm Body Length
SKU:STE-ffa15b
High-strength steel rivet with 120° countersunk head, ideal for trailer tail frames. Zinc plated for durability.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Steel-Fix All Steel 120° Countersunk Head Rivet - 14.0mm Body Length
$45.99
Quantity: 1
Claim Your Seller Account
Steel-Fix All Steel 120° Countersunk Head Rivet - 14.0mm Body Length
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

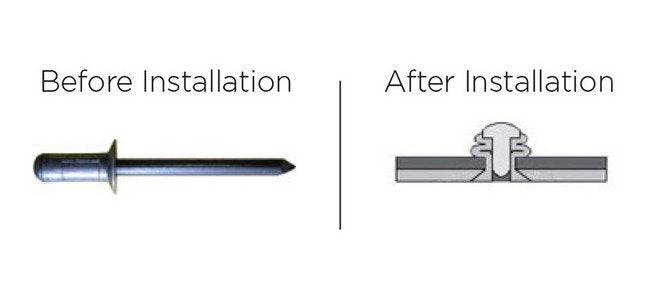

The Steel-Fix All Steel 120° Countersunk Head Rivet is a high-strength fastening solution ideal for trailer tail rear & front frames in the automotive industry. Made of low carbon steel with Zinc Plated Chromium finish, it offers a wide grip range from 3.0mm to 9.0mm for sturdy and vibration-resistant joints. With a nominal shear force of 450 kgf and nominal tensile force of 390 kgf, this rivet provides reliability and durability. Specifically designed for thin-sheet materials, this rivet meets the stringent standards of leading American vehicle manufacturers.
Product Specifications
Applications Automotive Application
Window FrameThe Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
Nominal Dimensions Body Length
14.0 mm | 0.551 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
8.65 mm | 0.341 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
9.0 mm | 0.354 in
Nominal Dimensions Minimum Grip Range
3.0 mm | 0.118 in
Nominal Forces Nominal Shear Force
450 kgf | 990 lbf
Nominal Forces Nominal Tensile Force
390 kgf | 858 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Steel-Fix
Technical Specs Carton Quantity
4000
Technical Specs Head Style
120 Degree Countersunk
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
