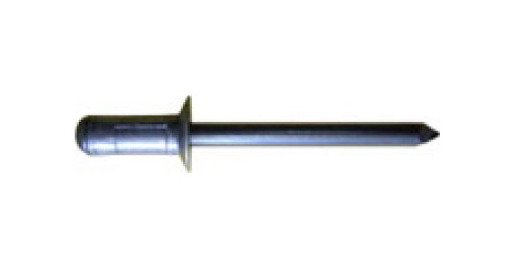

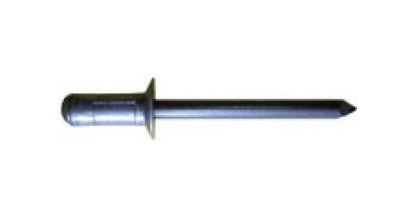

Steel-Fix All Steel 17.0mm Countersunk Head Rivet
Steel-Fix All Steel 17.0mm Countersunk Head Rivet
SKU:STE-618ff9
High-strength Steel-Fix rivet with 17.0mm body length, ideal for trailer tail applications. Wide grip range. Zinc plated for durability.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Steel-Fix All Steel 17.0mm Countersunk Head Rivet
$34.99
Quantity: 1
Claim Your Seller Account
Steel-Fix All Steel 17.0mm Countersunk Head Rivet
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Steel-Fix All Steel 17.0mm Countersunk Head Rivet is a high-strength solution tailored for trailer tail applications. Made of low carbon steel with a Zinc Plated Chromium (Cr) VI Free finish, it offers a wide grip range of 4.0mm to 12.0mm. With a nominal shear force of 450 kgf and nominal tensile force of 390 kgf, this rivet provides strong, vibration-resistant joints. Ideal for automotive applications like window frames, this product meets stringent industry standards for quality and durability.
Product Specifications
Applications Automotive Application
Window FrameThe Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
Nominal Dimensions Body Length
17.0 mm | 0.669 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
8.65 mm | 0.341 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
12.0 mm | 0.472 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
450 kgf | 990 lbf
Nominal Forces Nominal Tensile Force
390 kgf | 858 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Steel-Fix
Technical Specs Carton Quantity
4000
Technical Specs Head Style
120 Degree Countersunk
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
