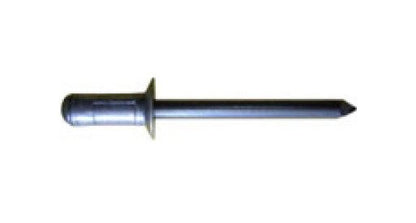

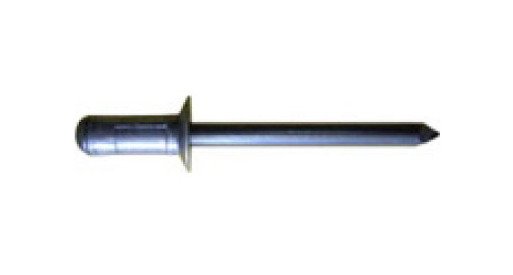

Steel-Fix All Steel 22.0mm Countersunk Head Rivet
Steel-Fix All Steel 22.0mm Countersunk Head Rivet
SKU:STE-219a3f
High-strength Steel-Fix 22.0mm Countersunk Rivet for secure joints in trailers. Ideal for automotive applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Steel-Fix All Steel 22.0mm Countersunk Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Steel-Fix All Steel 22.0mm Countersunk Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

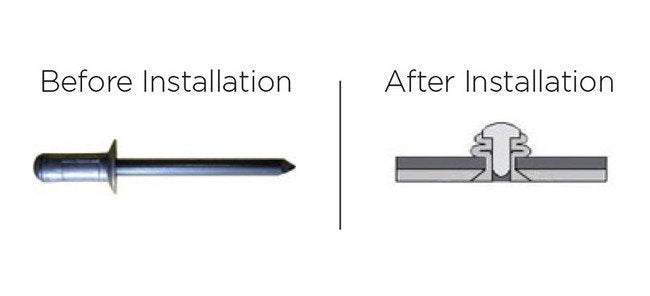

The Steel-Fix All Steel 22.0mm Countersunk Head Rivet is a high-strength fastener made from low carbon steel with a zinc-plated chromium finish. With a mandrel diameter of 2.9mm and a grip range of 8.5mm to 16.5mm, this rivet provides a secure and vibration-resistant joint ideal for trailer tail rear and front frames. It meets stringent automotive industry standards and is designed for thin-sheet materials, offering exceptional shear and tensile forces of 450kgf and 390kgf respectively.
Product Specifications
Applications Automotive Application
Window FrameThe Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
Nominal Dimensions Body Length
22.0 mm | 0.866 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
8.65 mm | 0.341 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
16.5 mm | 0.650 in
Nominal Dimensions Minimum Grip Range
8.5 mm | 0.335 in
Nominal Forces Nominal Shear Force
450 kgf | 990 lbf
Nominal Forces Nominal Tensile Force
390 kgf | 858 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Steel-Fix
Technical Specs Carton Quantity
3000
Technical Specs Head Style
120 Degree Countersunk
Technical Specs Mandrel Finish
Zinc Coated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
