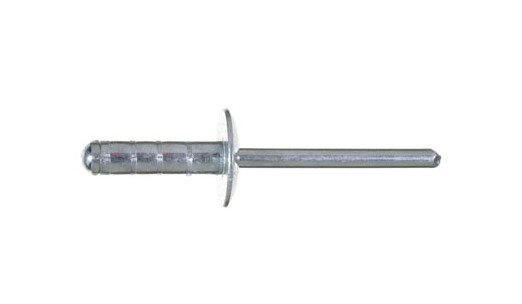

Steel-Fix All Steel X-Large Head Rivet 11.0mm
Steel-Fix All Steel X-Large Head Rivet 11.0mm
SKU:STE-ba9299
High-strength X-Large Head Rivet for automotive applications, featuring low carbon steel construction with zinc plated chromium (Cr) VI free finish.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Steel-Fix All Steel X-Large Head Rivet 11.0mm
$29.99
Quantity: 1
Claim Your Seller Account
Steel-Fix All Steel X-Large Head Rivet 11.0mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Steel-Fix All Steel X-Large Head Rivet in 11.0mm diameter offers exceptional strength and vibration resistance, making it ideal for automotive applications like window frames. Made of low carbon steel with a zinc plated chromium (Cr) VI free finish, this rivet meets stringent industry standards for durability and performance. With a nominal shear force of 450 kgf and a nominal tensile force of 390 kgf, it ensures a secure joint in various thin-sheet material projects.
Product Specifications
Applications Automotive Application
Window FrameThe Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
Nominal Dimensions Body Length
11.0 mm | 0.433 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.85 mm | 0.624 in
Nominal Dimensions Head Thickness
1.90 mm | 0.075 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
6.0 mm | 0.236 in
Nominal Dimensions Minimum Grip Range
1.5 mm | 0.059 in
Nominal Forces Nominal Shear Force
450 kgf | 990 lbf
Nominal Forces Nominal Tensile Force
390 kgf | 858 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Steel-Fix
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
