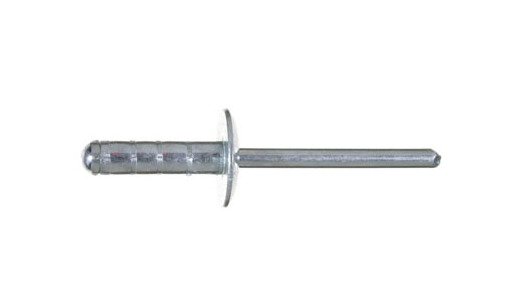

Steel-Fix All Steel X-Large Head Rivet 14.0mm
Steel-Fix All Steel X-Large Head Rivet 14.0mm
SKU:STE-bc21af
Durable Steel-Fix Rivet for strong, vibration-resistant joints in thin-sheet materials. Ideal for automotive applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Steel-Fix All Steel X-Large Head Rivet 14.0mm
$39.99
Quantity: 1
Claim Your Seller Account
Steel-Fix All Steel X-Large Head Rivet 14.0mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

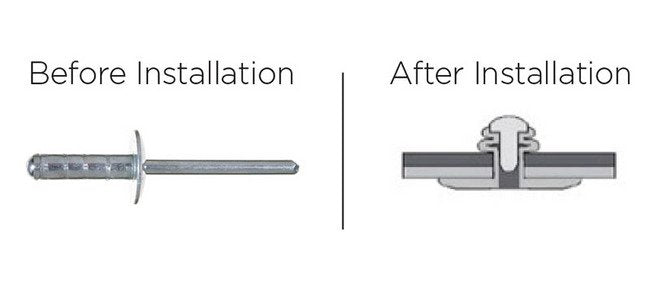

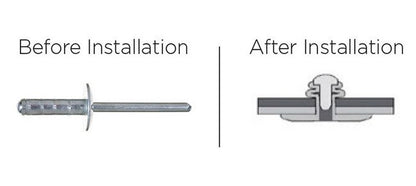

The Steel-Fix All Steel X-Large Head Rivet in 14.0mm offers a reliable solution for joining thin-sheet materials with a strong, vibration-resistant joint. Made of low carbon steel with a Zinc Plated Chromium VI Free finish, this rivet meets rigorous industry standards for durability and performance. With a nominal shear force of 450 kgf and a tensile force of 390 kgf, it is ideal for automotive applications like window frames. Whether for consumer or institutional use, this rivet delivers quality and reliability.
Product Specifications
Applications Automotive Application
Window FrameThe Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
Nominal Dimensions Body Length
14.0 mm | 0.551 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.85 mm | 0.624 in
Nominal Dimensions Head Thickness
1.90 mm | 0.075 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
9.0 mm | 0.354 in
Nominal Dimensions Minimum Grip Range
1.5 mm | 0.059 in
Nominal Forces Nominal Shear Force
450 kgf | 990 lbf
Nominal Forces Nominal Tensile Force
390 kgf | 858 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Steel-Fix
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
