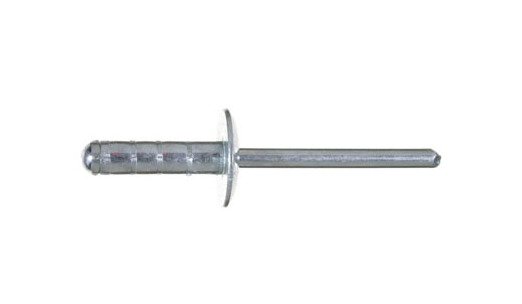

Steel-Fix Large Head Rivet 17.0mm
Steel-Fix Large Head Rivet 17.0mm
SKU:STE-1b004d
Durable Steel-Fix Large Head Rivet for strong and vibration-resistant joints in automotive applications. Zinc-plated low carbon steel construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Steel-Fix Large Head Rivet 17.0mm
$29.99
Quantity: 1
Claim Your Seller Account
Steel-Fix Large Head Rivet 17.0mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

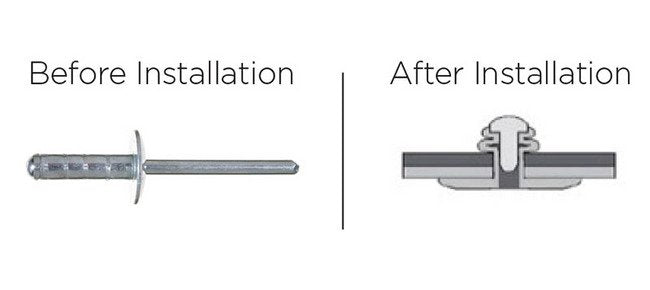

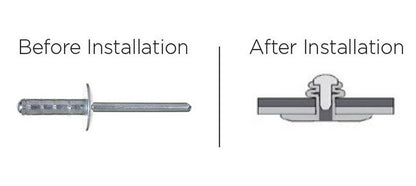

The Steel-Fix All Steel Large Head Rivet is a premium choice for fastening thin-sheet materials with a strong, vibration-resistant joint. With a body length of 17.0mm and a large head diameter of 14mm, this rivet offers high shear and tensile forces, making it ideal for automotive applications like window frames. Made of low carbon steel with a zinc-plated chromium (Cr) VI free finish, this rivet meets stringent quality standards for durability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Automotive Application
Window FrameThe Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
Nominal Dimensions Body Length
17.0 mm | 0.669 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
14 mm | 0.551 in
Nominal Dimensions Head Thickness
1.70 mm | 0.067 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
12.0 mm | 0.472 in
Nominal Dimensions Minimum Grip Range
5.5 mm | 0.216 in
Nominal Forces Nominal Shear Force
450 kgf | 990 lbf
Nominal Forces Nominal Tensile Force
390 kgf | 858 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Steel-Fix
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
