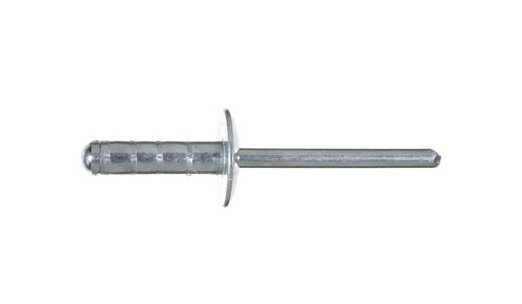

Steel-Fix Large Head Rivet, 20.0mm Body Length - Pack of 3000
Steel-Fix Large Head Rivet, 20.0mm Body Length - Pack of 3000
SKU:STE-c7cdf8
Premium Steel-Fix Large Head Rivet - Industrial strength, 20.0mm body, 450 kgf shear force, automotive-grade.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Steel-Fix Large Head Rivet, 20.0mm Body Length - Pack of 3000
$59.99
Quantity: 1
Claim Your Seller Account
Steel-Fix Large Head Rivet, 20.0mm Body Length - Pack of 3000
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Steel-Fix All Steel Large Head Rivet is a premium fastening solution crafted for industrial strength. Constructed with Low Carbon Steel and Zinc Plated Chromium (Cr) VI Free finish, this rivet assures durability and corrosion resistance. With a 20.0mm body length and a gripping range of 9.0mm to 15.0mm, it adheres securely, withstanding nominal shear force of 450 kgf and tensile force of 390 kgf. Ideal for automotive applications like window frames, this rivet ensures vibration-resistant joints for long-lasting performance.
Product Specifications
Applications Automotive Application
Window FrameThe Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
Nominal Dimensions Body Length
20.0 mm | 0.787 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
14 mm | 0.551 in
Nominal Dimensions Head Thickness
1.70 mm | 0.067 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
15.0 mm | 0.591 in
Nominal Dimensions Minimum Grip Range
9.0 mm | 0.354 in
Nominal Forces Nominal Shear Force
450 kgf | 990 lbf
Nominal Forces Nominal Tensile Force
390 kgf | 858 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Steel-Fix
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
