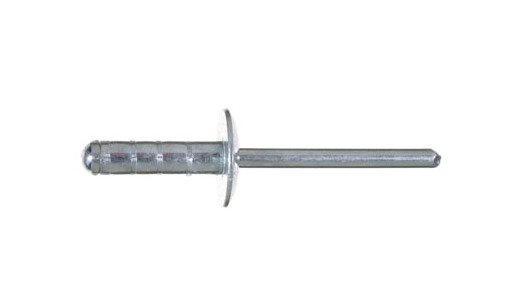

Steel-Fix Large Head Steel Rivet, 9.0mm Body Length
Steel-Fix Large Head Steel Rivet, 9.0mm Body Length
SKU:STE-b4f15a
Durable Steel-Fix Large Head Rivet, perfect for automotive and thin-sheet applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Steel-Fix Large Head Steel Rivet, 9.0mm Body Length
$29.99
Quantity: 1
Claim Your Seller Account
Steel-Fix Large Head Steel Rivet, 9.0mm Body Length
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Steel-Fix All Steel Large Head Rivet offers superior strength and vibration resistance, making it ideal for automotive applications like window frame installation. With a zinc-plated chromium VI free finish, low carbon steel body material, and carbon steel mandrel, this rivet ensures durability and reliability. Meeting stringent industry standards, this rivet provides a secure joint for thin-sheet materials, with a nominal shear force of 450 kgf and nominal tensile force of 390 kgf.
Product Specifications
Applications Automotive Application
Window FrameThe Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
Nominal Dimensions Body Length
9.0 mm | 0.354 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
14 mm | 0.551 in
Nominal Dimensions Head Thickness
1.70 mm | 0.067 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
4.0 mm | 0.157 in
Nominal Dimensions Minimum Grip Range
1.5 mm | 0.059 in
Nominal Forces Nominal Shear Force
450 kgf | 990 lbf
Nominal Forces Nominal Tensile Force
390 kgf | 858 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Steel-Fix
Technical Specs Carton Quantity
3000
Technical Specs Head Style
Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
