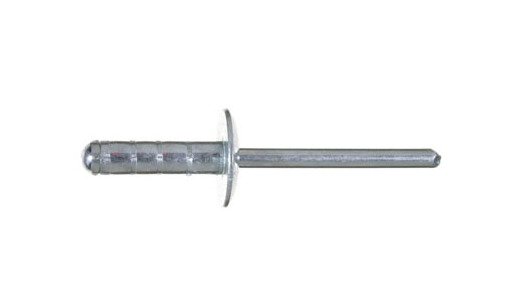

Steel-Fix X-Large Head Rivet 17.0mm
Steel-Fix X-Large Head Rivet 17.0mm
SKU:STE-8b3916
Heavy-duty Steel-Fix Rivet for secure, vibration-resistant joints in institutional and automotive applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Steel-Fix X-Large Head Rivet 17.0mm
$39.99
Quantity: 1
Claim Your Seller Account
Steel-Fix X-Large Head Rivet 17.0mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

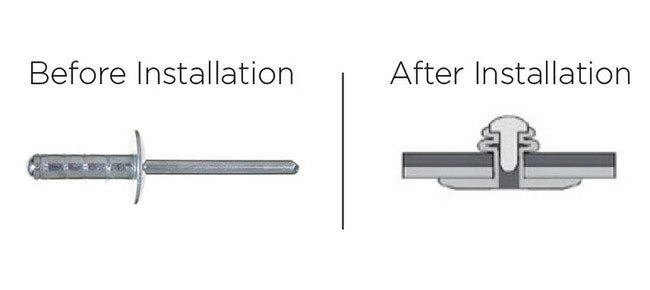

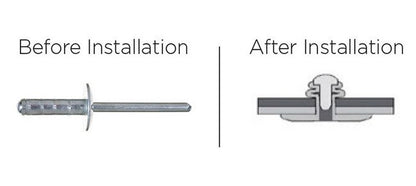

The Steel-Fix All Steel X-Large Head Rivet is designed for heavy-duty applications with its low carbon steel body and chromium VI free finish. With a maximum grip range of 12.0mm and a nominal shear force of 450kgf, it provides a secure and vibration-resistant joint ideal for institutional and automotive uses.
Product Specifications
Applications Automotive Application
Window FrameThe Steel Fix fastener is ideal for thin-sheet materials and providing a strong, vibration resistant joint. This solution was tailored made for a leading, American vehicle manufacturer.
Nominal Dimensions Body Length
17.0 mm | 0.669 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
4.9 mm | 0.193 in
Nominal Dimensions Head Diameter
15.85 mm | 0.624 in
Nominal Dimensions Head Thickness
1.90 mm | 0.075 in
Nominal Dimensions Mandrel Diameter
2.9 mm | 0.114 in
Nominal Dimensions Maximum Grip Range
12.0 mm | 0.472 in
Nominal Dimensions Minimum Grip Range
5.5 mm | 0.216 in
Nominal Forces Nominal Shear Force
450 kgf | 990 lbf
Nominal Forces Nominal Tensile Force
390 kgf | 858 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Steel-Fix
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
