Steel Metric Precision Sleeve Couplings with Keyways
Steel Metric Precision Sleeve Couplings with Keyways
SKU:ROU-95121c
Enhance your machinery with precision and convenience using our Steel Metric Precision Sleeve Couplings with Keyways. RoHS2 & REACH compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Steel Metric Precision Sleeve Couplings with Keyways
$29.99
Quantity: 1
Claim Your Seller Account
Steel Metric Precision Sleeve Couplings with Keyways
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

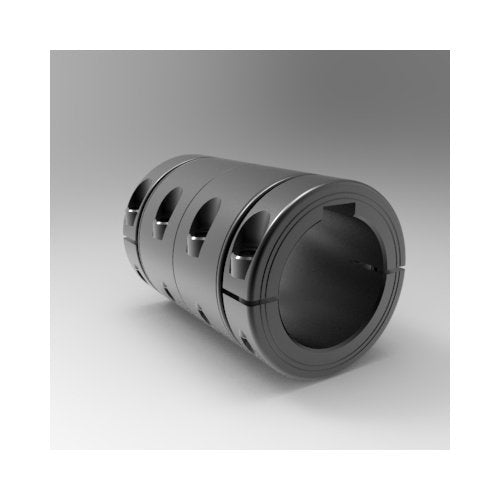

Upgrade your machinery with our Steel Metric Precision Sleeve Couplings featuring a balanced design for precise shaft alignment. This two-piece set is fully metric, with axial runout less than .001" TIR. The solid center section and keyway ensure a close tolerance fit, while the Accu-Clamp™ design offers integral self-centering clamping collars for easy assembly and adjustment. Made of 1215 alloy steel with black oxide finish, these couplings are precision machined, non-marring, and RoHS2 & REACH compliant.
Product Specifications
Dimensional Attributes Bore Size A
15 mm
Dimensional Attributes Bore Size B
15 mm
Dimensional Attributes Keyway A
5 mm
Dimensional Attributes Keyway B
5 mm
Dimensional Attributes Outside Diameter
34 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Size
M5 x 0.8 x 16
Dimensional Attributes Total Length
50 mm
Specifications Alloy
1215
Specifications Approximate Weight
0.5 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
5LM015015FKPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786042645
