Steel Narrow Bracket Economy Hinge - Series 3400
Steel Narrow Bracket Economy Hinge - Series 3400
SKU:HIN-1b3f2e
High-quality steel hinge with embossed strap and non-removable pin for secure mounting. Ideal for truck/trailer use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Steel Narrow Bracket Economy Hinge - Series 3400
$29.99
Quantity: 1
Claim Your Seller Account
Steel Narrow Bracket Economy Hinge - Series 3400
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

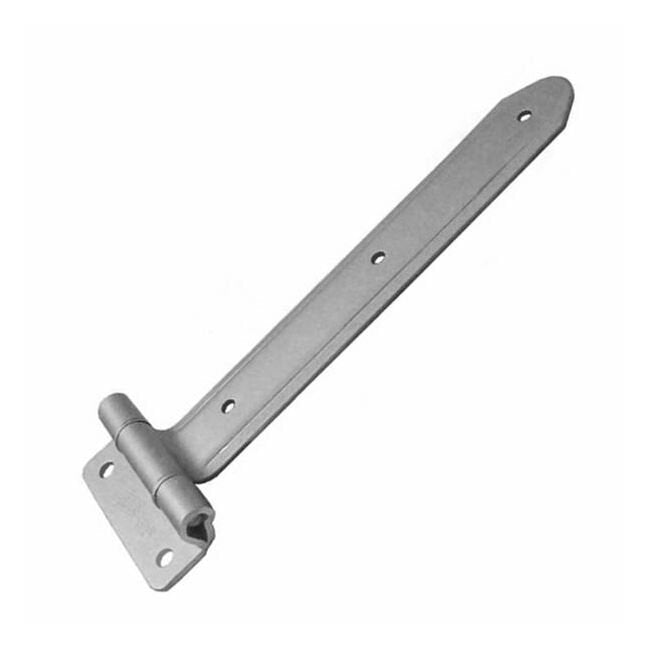

The Series 3400 Steel Narrow Bracket Economy Hinge is a durable and cost-effective solution for side and rear door mounting with a 180-degree swing. Crafted from high-quality steel, this hinge features an embossed strap for enhanced strength and a non-removable pin for maximum security. Seam-welded for superior durability, this hinge includes an 8 Ga. bracket and strap available in various sizes, with a zinc-plated finish. Ideal for truck and trailer applications, this hinge ensures reliable performance and longevity.
Ready to Grow Without Cash Flow Constraints?

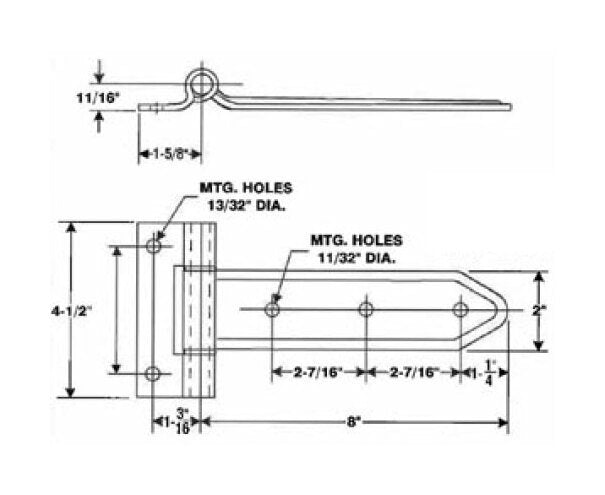

Product Specifications
Specifications Bracket
8 Ga. x 4 1/2" x 1 5/8" from center of pin
Specifications Country Of Origin
US
Specifications Finish
Zinc Plated
Specifications Material
Steel
Specifications Pin Diameter
1/2 in
Specifications Product Guides
Hinge's Guides
Specifications Strap Length
8 in
Specifications Strap Size
8 Ga. x 2"
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
1 3/4 lbs
