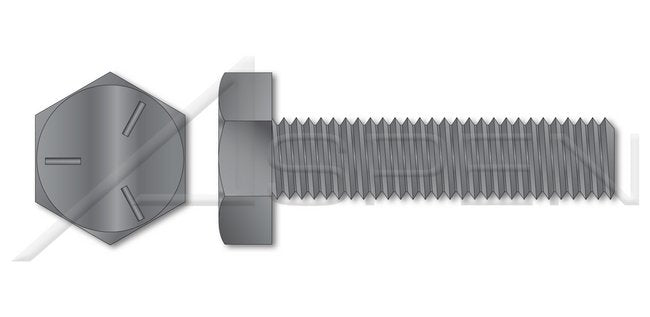

Steel Plain Grade 5 Full Thread Hex Head Machine Bolt

Name: Steel Plain Grade 5 Full Thread Hex Head Machine Bolt
Brand: Aspen Fasteners
SKU: BOL-fd0f02
Price: 49.99 USD
Availability: OutOfStock

SKU:BOL-fd0f02

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Hex Bolts have a six-sided hexagonally shaped head designed to be mated with a nut. Conversely, Cap Screws are designed to be threaded into a pre-tapped hole, for example a piece of machinery. Cap Screws are typically produced to tighter tolerances than bolts and will feature a washer face under the head and a chamfered point.

Product Specifications

Additional Information

Machine bolts are most commonly used in construction applications.Machine bolts tolerances are typically less precise than those of cap screws.Unlike cap screws, does not have a washer face or a machined point.The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.

Specifications Coating

Uncoated

Specifications Drive Style

External Hex Drive

Specifications Head Style

Hex Head

Specifications Material

Steel

Specifications Material Grade

Grade 5 Steel

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

Steel Plain Grade 5 Full Thread Hex Head Machine Bolt
