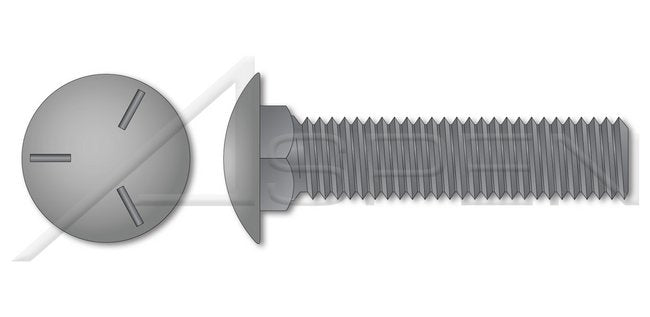

Steel Plain Grade 5 Round Head Square Neck Undersized Body Full Thread Carriage Bolt

Name: Steel Plain Grade 5 Round Head Square Neck Undersized Body Full Thread Carriage Bolt
Brand: Aspen Fasteners
SKU: BOL-658761
Price: 49.99 USD
Availability: OutOfStock

SKU:BOL-658761

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Carriage Bolts are designed for wood-to-wood or wood-to-metal applications. These self-anchoring bolts have a special neck, often square, that locks the bolt into place to resist turning when the nut is being tightened.

Product Specifications

Additional Information

Also known as coach bolts, are typically used to fasten metal to wood.The square neck under the head locks the bolt into place.The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.Can be used as a security fastener. The smooth head prevents unfastening from the head side.

Specifications Coating

Uncoated

Specifications Head Detail

Square Neck

Specifications Head Style

Round Head

Specifications Material

Steel

Specifications Material Grade

Grade 5 Steel

Specifications Style

Undersized Body

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

Steel Plain Grade 5 Round Head Square Neck Undersized Body Full Thread Carriage Bolt
