Steel Short Stabilized Connector Pair - NPT Flange, SZ Series
Steel Short Stabilized Connector Pair - NPT Flange, SZ Series
SKU:NOS-26886e
Reinforce installations with precision. Steel Short Stabilized Connector Pair for NPT connections. Ideal for high-pressure applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Steel Short Stabilized Connector Pair - NPT Flange, SZ Series
$129.99
Quantity: 1
Claim Your Seller Account
Steel Short Stabilized Connector Pair - NPT Flange, SZ Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

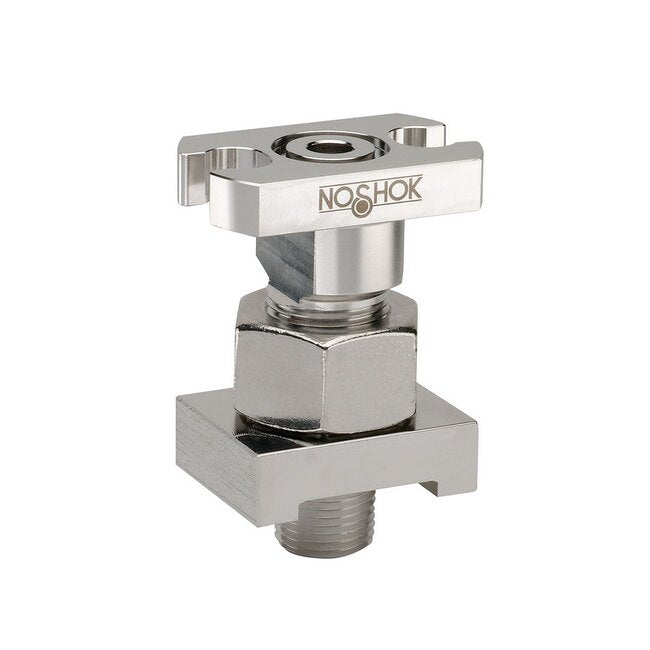

The Steel Short Stabilized Connector Pair from NOSHOK is designed to reinforce installations by effectively shifting radial-stress loads away from NPT connections. These connectors feature slotted bolt holes that accommodate 2-1/8" and 2-1/4" bolt spacings, enhancing installation versatility. The optional dielectric barrier creates a non-conductive shield between the instrument and the orifice fitting, ensuring safety and reliability in various applications. With a pressure rating of 10,000 psi at 200°F, these connectors are constructed from durable steel, making them ideal for institutional and government procurement needs.
Product Specifications
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Options And Accessories Dielectric Kits Dk Series

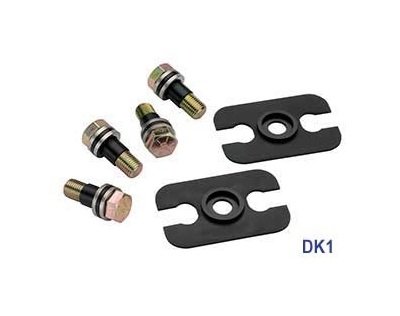

Dielectric Kits are designed to maintain the integrity and reliability of the pipeline and piping system through safety and corrosion protection. Dielectric Kits provide a non-conductive barrier between the process piping and the instrument and isolate components from the effects of electrical current. By eliminating metal-to-metal contact, current is halted to prevent corrosion and aid in the cathodic protection of the system.One Piece Dielectric Gasket, Pair, Steel, Acetal (DK1)One Piece Dielectric Gasket, Pair with Stainless Steel Bolts, Stainless Steel, Acetal (DK1-SS)PTFE Gasket with Dielectric Shim, Pair, Steel, PTFE, PVC (DK2)DK1Single piece design combining a Acetal sealing gasket and Acetal dielectric shimBolts, washers and dielectric bushings are included with the kitsCannot be used in conjunction with seal rings or o-ringsSeal rings or o-rings not requiredDK2Used as an alternative to a one-piece design when a separate sealing gasket or o-ring is requiredTwo piece design consisting of a PTFE sealing gasket and PVC dielectric shimBolts, washers and dielectric bushings are included with the kitsSpecifications:Material: Acetal, PVCMax operating temp 150 ºFDielectric strength exceeds 1/32 air arc gap approximately 2,500 VdcAll 316SS products meet the requirements of NACE MR0175/ISO 15156-3.
Options And Accessories Direct Connect Assembly For Oil And Gas

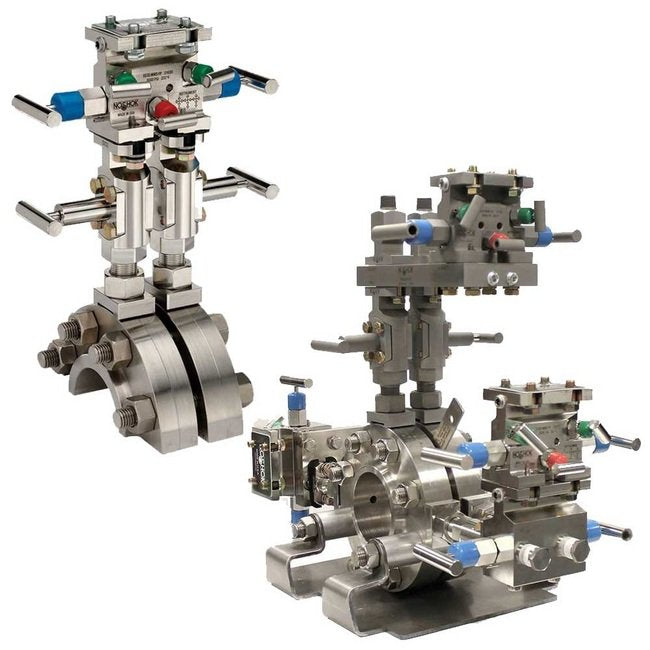

The NOSHOK Direct Connect Assembly provides an installation that keeps the meter close to the orifice taps for accurate flow measurements.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications Bolt Material
Carbon Steel
Specifications Connection Size
1/2 in
Specifications Connection Type
National Pipe Thread (NPT), Flange
Specifications Connector Type

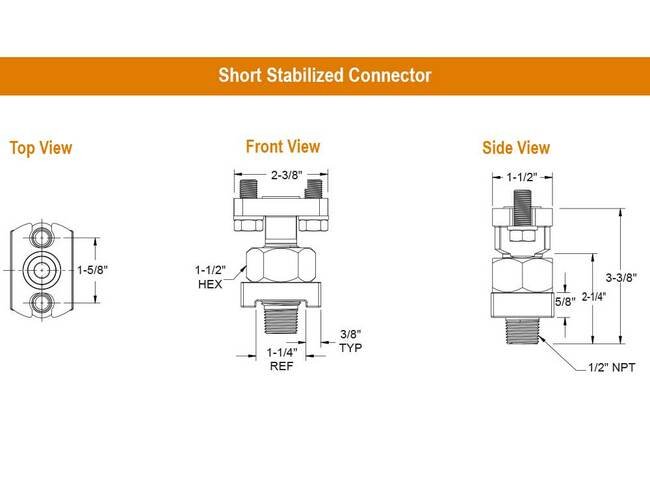

Short stabilized pair (For flat installations, orifice fitting)
Specifications Length
3-3/8 in | 5 in
Specifications Material
Steel
Specifications Orifice Size
0.375 in
Specifications Pressure Rating At 200 Degree Fahrenheit F Temper
10,000 psi
Specifications Related Items
VHS, 316 Stainless Steel Vertical to Horizontal Manifold Adapter
Specifications Series
SZ
Specifications Type
Stabilized Connector
Specifications Warranty
3 y
Specifications Weight
3.3 lb
