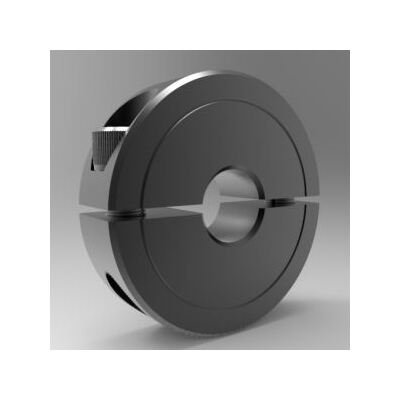

Steel Split Clamp Remachineable Shaft Collar
Steel Split Clamp Remachineable Shaft Collar
SKU:ROU-1fda64
Customize bore sizes effortlessly with the Steel Split Clamp Remachineable Shaft Collar, ensuring precise and secure shaft positioning.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Steel Split Clamp Remachineable Shaft Collar
$15.99
Quantity: 1
Claim Your Seller Account
Steel Split Clamp Remachineable Shaft Collar
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Steel Split Clamp Remachineable Shaft Collar allows for easy customization with a pilot hole for machining to desired bore sizes and configurations. This two-piece collar offers superior holding power and precision machined design for non-marring, adjustable, and high clamping force applications. Save time and costs by in-house bore customization, ideal for round bore shaft collar needs.
Product Specifications
Dimensional Attributes Maximum Bore Size
0.750 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Pilot Hole Size
7/20 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.22 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
8L012REM
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026898
