Steel Split Clamp Shaft Mounting Collar, Low Profile 1-1/8in
Steel Split Clamp Shaft Mounting Collar, Low Profile 1-1/8in
SKU:FLA-6f3970
Precision machined Steel Split Clamp Shaft Collar for secure and easy shaft mounting, non-marring, stackable design
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Steel Split Clamp Shaft Mounting Collar, Low Profile 1-1/8in
$24.99
Quantity: 1
Claim Your Seller Account
Steel Split Clamp Shaft Mounting Collar, Low Profile 1-1/8in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

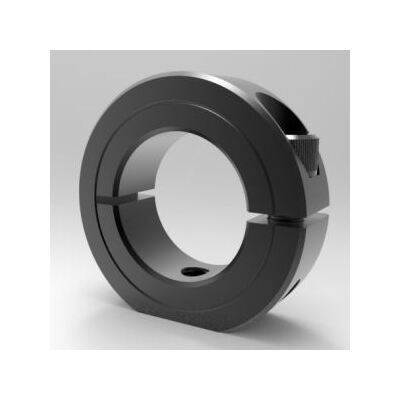

The Steel Split Clamp Shaft Mounting Collar is precision machined for securing standard round shafts or thin wall tubes with ease. Featuring a low profile design, it offers high clamping power with a smooth bore to protect shafts from damage. Designed with a flat and countersunk, tapped hole for easy mounting, this collar is non-marring, adjustable, and stackable for versatile applications. Made in the USA from black oxide-finished 1215 alloy steel, it ensures durability and reliability for various mounting needs.
Product Specifications
Dimensional Attributes Bore Size
1-1/8 in
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
1.656 in
Dimensional Attributes Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Outside Diameter
1.875 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.23 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
19L102MT
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026553
