Steel Split Clamp-Type UNF/UNC Threaded Shaft Collar

Name: Steel Split Clamp-Type UNF/UNC Threaded Shaft Collar
Brand: Stafford Manufacturing Corp.
SKU: THR-a70aeb
Price: 34.35 USD
Availability: OutOfStock

SKU:THR-a70aeb

Precision machined Steel Split Clamp-Type Collar for UNF/UNC threaded shafts. High clamping power, easy adjustment.

$34.35

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

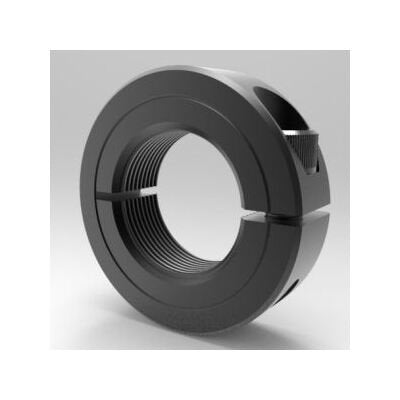

Experience superior holding power with our Steel Split Clamp-Type UNF/UNC Threaded Shaft Collar, designed for UNF (fine thread) or UNC (coarse thread) shafts. Precision machined from 1215 Steel with Black Oxide finish, this Low Profile collar offers high clamping force and non-marring precision. Adjust with ease on shafts sized 2-12, featuring an outside diameter of 3.000 inches and a width of 0.688 inches. Say goodbye to set screws with our reliable and durable solution.

Product Specifications

Dimensional Attributes Outside Diameter

3.000 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

5/16-24

Dimensional Attributes Threaded Bore Size

2-12

Dimensional Attributes Width

0.688 in

Specifications Alloy

1215

Specifications Approximate Weight

0.74 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications List Price

34.35 USD

Specifications Material

Steel

Specifications Part Number

7L200F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786011887
