Steel Threaded Hub Collar - UNF/UNC 1-1/2-12

Name: Steel Threaded Hub Collar - UNF/UNC 1-1/2-12
Brand: Stafford Manufacturing Corp.
SKU: ROU-5f70bd
Price: 19.99 USD
Availability: OutOfStock

SKU:ROU-5f70bd

High-performance steel threaded hub collar for UNF/UNC shafts. Precision-machined for bearing applications. RoHS2 and REACH compliant.

$19.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

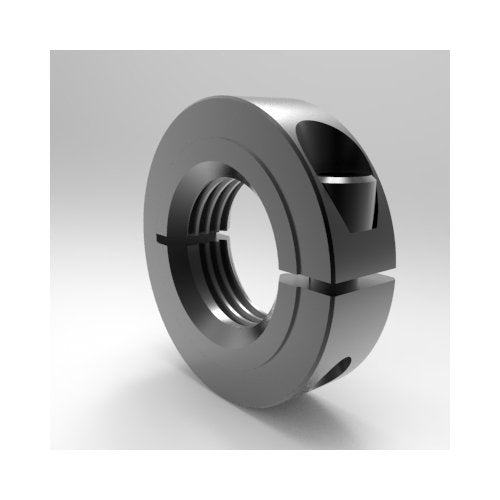

The UNF/UNC Threaded Hub Collars One-Piece Split Clamp-Type offer precision-machined hubs for reduced contact area, ideal for bearing inner-race applications. These collars, designed for standard UNF shafts, provide superior holding power over set-screw collars. Made of durable steel with a black oxide finish, they ensure non-marring, easy adjustments with high clamping force. Suitable for various industrial uses, these collars meet RoHS2 and REACH compliance standards.

Product Specifications

Dimensional Attributes Outside Diameter

2.375 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Threaded Bore Size

1-1/2-12

Dimensional Attributes Width

0.562 in

Specifications Alloy

1215

Specifications Approximate Weight

0.43 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

HUB7L108F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786030031
