Steel UNF/UNC Threaded Hinge Shaft Collar

Name: Steel UNF/UNC Threaded Hinge Shaft Collar
Brand: Stafford Manufacturing Corp.
SKU: THR-c3d596
Price: 24.99 USD
Availability: OutOfStock

SKU:THR-c3d596

Premium Steel UNF/UNC Threaded Hinge Shaft Collar for secure, hassle-free shaft applications. RoHS2 and REACH compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

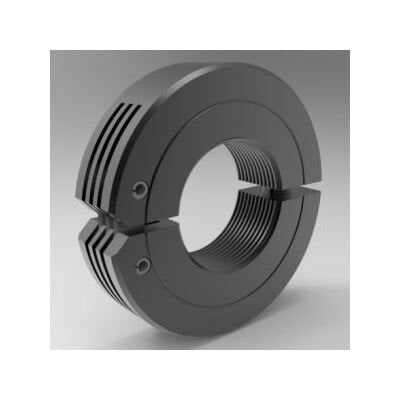

The Steel UNF/UNC Threaded Hinge Shaft Collar is a superior alternative to set-screw collars, offering exceptional holding power and ease of use. These collars fit standard UNF/UNC threaded shafts, are available in High Strength or Low Profile styles, and feature a smooth bore to prevent shaft damage. Designed for fast operation in demanding environments, these hinge collars are effortless to assemble, reposition, and disassemble, eliminating the hassle of fumbling with screws. Crafted from high-quality Steel with black oxide finish, these collars are RoHS2 and REACH compliant, ensuring quality and environmental responsibility.

Product Specifications

Dimensional Attributes Outside Diameter

3.500 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

5/16-24 x 1

Dimensional Attributes Threaded Bore Size

2-1/4-12

Dimensional Attributes Width

0.625 in

Specifications Alloy

1215

Specifications Approximate Weight

0.87 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

3L204FH

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

High Strength

Specifications Upc Code

662786014512

Steel UNF/UNC Threaded Hinge Shaft Collar
