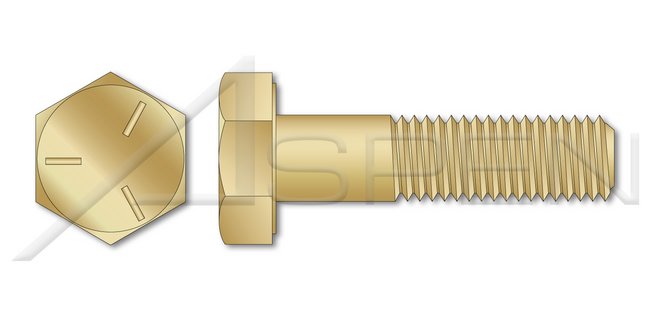

Steel Yellow Cadmium Plating MS90725 DFARS Coarse Thread Hex Head Cap Screw Bolt

Name: Steel Yellow Cadmium Plating MS90725 DFARS Coarse Thread Hex Head Cap Screw Bolt
Brand: Aspen Fasteners
SKU: BOL-5ceccb
Price: 49.99 USD
Availability: OutOfStock

SKU:BOL-5ceccb

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Hex Bolts have a six-sided hexagonally shaped head designed to be mated with a nut. Conversely, Cap Screws are designed to be threaded into a pre-tapped hole, for example a piece of machinery. Cap Screws are typically produced to tighter tolerances than bolts and will feature a washer face under the head and a chamfered point.

Product Specifications

Additional Information

Military grade fasteners are DFARS compliant and made in North America. Certifications available.Hex cap screws are manufactured to tighter tolerances as compared to hex bolts.The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines.Washer face provides a precision bearing surface.Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch.Chamfered point improves engagement with a nut or pre-tapped hole.Cadmium plating offer outstanding corrosion resistance, even in high-salt environments.

Specifications Coating

Cadmium Plated

Specifications Coating Color

Yellow

Specifications Country Of Origin

Made in U.S.A.

Specifications Drive Style

External Hex Drive

Specifications Head Detail

Washer Face

Specifications Head Style

Hex Head

Specifications Industry Standards And Specifications

Defense Federal Acquisition Regulation Supplement (DFARS) | Military Specifications (MS90725)

Specifications Material

Steel

Specifications Material Grade

Grade 5 Steel

Specifications Point

Chamfered Point

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Pitch

Coarse Thread
