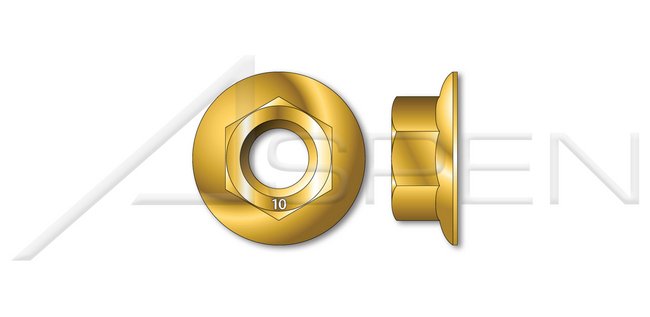

Steel Yellow Zinc Plated DIN 6923 Metric Class 10 Baked Hex Flange Nut

Name: Steel Yellow Zinc Plated DIN 6923 Metric Class 10 Baked Hex Flange Nut
Brand: Aspen Fasteners
SKU: NUT-e12fd6
Price: 49.99 USD
Availability: OutOfStock

SKU:NUT-e12fd6

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Flange Nuts are hex nuts with a flanged base that acts line a washer and distributes the clamping load over a greater surface area. They are often used in manufacturing assembly lines where operations are speeded by using a single fastener instead of a nut and washer.

Product Specifications

Additional Information

Wide flange on one side acts as an integrated washer to distribute the load of the nut.Class 10 nuts are designed to be used with screws and bolts of property class 10.9 or lower.

Specifications Coating

Zinc Plated and Baked

Specifications Coating Color

Yellow

Specifications Drive Style

External Hex Drive

Specifications Hardness Rating

Rockwell C26-C36

Specifications Industry Standards And Specifications

German Institute for Standardization (DIN 6923)

Specifications Material

Steel

Specifications Material Grade

Class 10 Steel

Specifications Material Processes

Heat Treated, Quenched and Tempered

Specifications System Of Measurement

Metric

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

Steel Yellow Zinc Plated DIN 6923 Metric Class 10 Baked Hex Flange Nut
