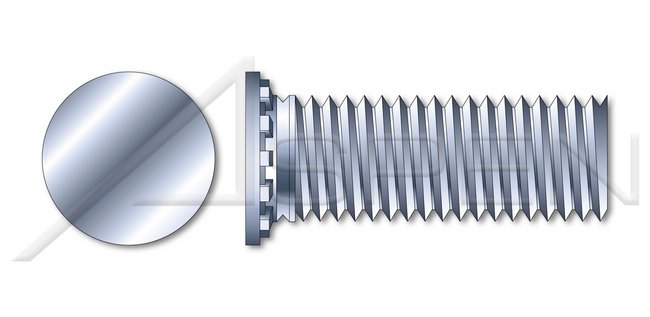

Steel Zinc Plated and Baked Full Thread Flush Head Self-Clinching Studs

Name: Steel Zinc Plated and Baked Full Thread Flush Head Self-Clinching Studs
Brand: Aspen Fasteners
SKU: ROD-294547
Price: 49.99 USD
Availability: OutOfStock

SKU:ROD-294547

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Clinch Studs are machine threaded studs with a low profile cylindrical head at one end meant to be pressed into a hole in a sheet, for instance sheet metal, locking it into place.

Product Specifications

Additional Information

Self clinching studs are designed to become permanent fixtures of the parts they are installed onto.Forcing the clinching ring into softer material causes it to deform and lock into the shank.Pressed into a drilled or punched hole with an arbor press or a similar pressure tool.

Specifications Coating

Zinc Plated and Baked

Specifications Coating Color

Clear

Specifications Core Hardness Rating

Rockwell C29-C38

Specifications Head Detail

Annular Groove and 12 Ribs

Specifications Head Style

Flush Head

Specifications Material

Steel

Specifications Material Processes

Case Hardened

Specifications Minimum Hardness Rating

Rockwell C45

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread
