Steel Zinc Plated and Baked Type "1" Indented Hex Head Thread Cutting Screw

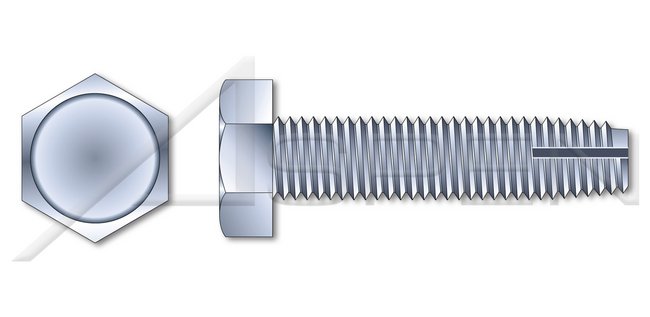

Name: Steel Zinc Plated and Baked Type "1" Indented Hex Head Thread Cutting Screw
Brand: Aspen Fasteners
SKU: SCR-5ca3cd
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-5ca3cd

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Thread Cutting Screws are a type of self-tapping screw designed to tap its own threads as it penetrates a pre-drilled pilot hole. Manufactured with specialized screw points - referred to as "Types" (Type 1, Type 23, Type 25 and Type F) - designed to physically remove material from the substrate to form the tapped thread path.

Product Specifications

Additional Information

Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.Type 1 point thread cutting screws have a single flute for general purpose use.

Specifications Coating

Zinc Plated and Baked

Specifications Coating Color

Clear

Specifications Core Hardness Rating

Rockwell C28-C38

Specifications Drive Style

External Hex Drive

Specifications Head Style

Hex Indented Head

Specifications Industry Standards And Specifications

American Society of Mechanical Engineers (ASME B18.6.3) | Society of Automotive Engineers (SAE-J933)

Specifications Material

Steel

Specifications Material Processes

Case Hardened

Specifications Minimum Hardness Rating

Rockwell C45

Specifications Point

Type "1"

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

Steel Zinc Plated and Baked Type "1" Indented Hex Head Thread Cutting Screw
