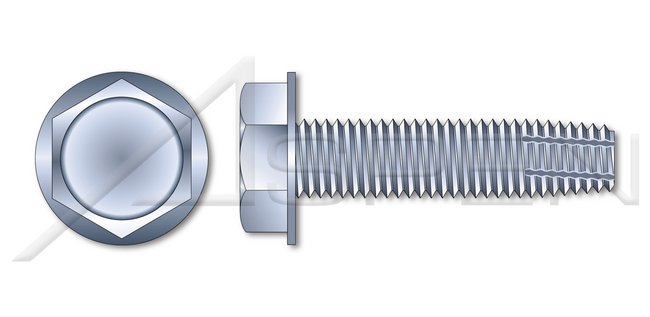

Steel Zinc Plated and Baked Type "F" Hex Indented Washer Head Thread Cutting Screw

Name: Steel Zinc Plated and Baked Type "F" Hex Indented Washer Head Thread Cutting Screw
Brand: Aspen Fasteners
SKU: SCR-f80e5c
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-f80e5c

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Thread Cutting Screws are a type of self-tapping screw designed to tap its own threads as it penetrates a pre-drilled pilot hole. Manufactured with specialized screw points - referred to as "Types" (Type 1, Type 23, Type 25 and Type F) - designed to physically remove material from the substrate to form the tapped thread path.

Product Specifications

Additional Information

Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.Type F point screws have a machine screw thread and a blunt tapered point.Ideal for use with heavy gauge sheet metal, zinc, cast iron and lead die castings.

Specifications Coating

Zinc Plated and Baked

Specifications Coating Color

Clear

Specifications Core Hardness Rating

Rockwell C28-C38

Specifications Drive Style

External Hex Drive

Specifications Head Style

Hex Indented Washer Head

Specifications Industry Standards And Specifications

American Society of Mechanical Engineers (ASME B18.6.3) | Society of Automotive Engineers (SAE-J933)

Specifications Material

Steel

Specifications Material Processes

Case Hardened

Specifications Minimum Hardness Rating

Rockwell C45

Specifications Point

Type "F"

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread
