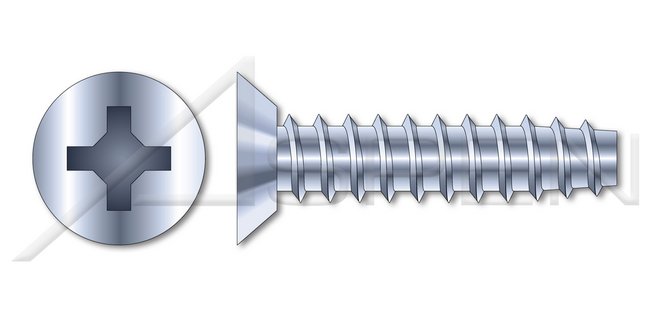

Steel Zinc Plated and Waxed Flat Undercut Phillips® Drive 48-2 Thread Trilobe Thread Rolling Screw for Plastics

Name: Steel Zinc Plated and Waxed Flat Undercut Phillips® Drive 48-2 Thread Trilobe Thread Rolling Screw for Plastics
Brand: Aspen Fasteners
SKU: SCR-1c4b32
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-1c4b32

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Contrary to Thread Cutting Screws, Thread Rolling Screws are designed to deform (instead of eject) the material that they are screwed into in order to form a thread in an untapped hole. There are different designs of Thread Rolling Screws depending on whether they are meant to be screwed into metals or plastics.

Product Specifications

Additional Information

These thread rolling screws are generic alternatives to PLASTITE® brand screws.Also known as thread forming screws, thread rolling screws, trilob screws, or trilobe screws.

Specifications Coating

Zinc Plated and Waxed

Specifications Coating Color

Clear

Specifications Core Hardness Rating

Rockwell C28-C38

Specifications Drive Detail

Phillips® Type H

Specifications Drive Style

Cruciform Recess Drive

Specifications Head Detail

82 Degree Countersink

Specifications Head Style

Flat Countersunk Undercut Head

Specifications Industry Standards And Specifications

American Society of Mechanical Engineers (ASME B18.6.3)

Specifications Material

Steel

Specifications Material Processes

Case Hardened

Specifications Minimum Hardness Rating

Rockwell C45

Specifications Style

Trilobe Triangular Body with Threads for Plastics

Specifications System Of Measurement

Inch

Specifications Threading

48-2 Double-Lead Thread

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

Steel Zinc Plated and Waxed Flat Undercut Phillips® Drive 48-2 Thread Trilobe Thread Rolling Screw for Plastics
