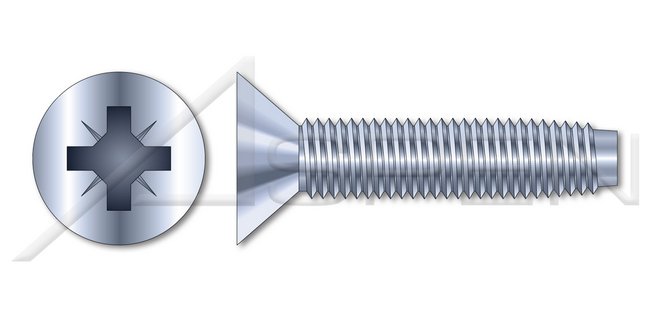

Steel Zinc Plated Flat Pozi Recess Type Z Thread Rolling Screw for Metals

Name: Steel Zinc Plated Flat Pozi Recess Type Z Thread Rolling Screw for Metals
Brand: Aspen Fasteners
SKU: SCR-c83d2f
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-c83d2f

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Contrary to Thread Cutting Screws, Thread Rolling Screws are designed to deform (instead of eject) the material that they are screwed into in order to form a thread in an untapped hole. There are different designs of Thread Rolling Screws depending on whether they are meant to be screwed into metals or plastics.

Product Specifications

Additional Information

Also known as thread forming screws, thread rolling screws, trilob screws, or trilobe screws.A Pozidriv® recess allows for increased torque while reducing the risk of drive cam-out.Flat countersunk head screws sit flush with the surface of the material they are inserted into.

Specifications Coating

Zinc Plated and Waxed

Specifications Coating Color

Clear

Specifications Drive Detail

Pozidriv® Type Z

Specifications Drive Style

Cruciform Recess Drive

Specifications Head Detail

80 Degree Countersink

Specifications Head Style

Flat Countersunk Head

Specifications Industry Standards And Specifications

German Institute for Standardization (DIN 7500) Type M

Specifications Material

Steel

Specifications Material Processes

Case Hardened

Specifications Style

Trilobe Triangular Body with Threads for Metals

Specifications System Of Measurement

Metric

Specifications Threading

Machine Screw Threading

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

Steel Zinc Plated Flat Pozi Recess Type Z Thread Rolling Screw for Metals
