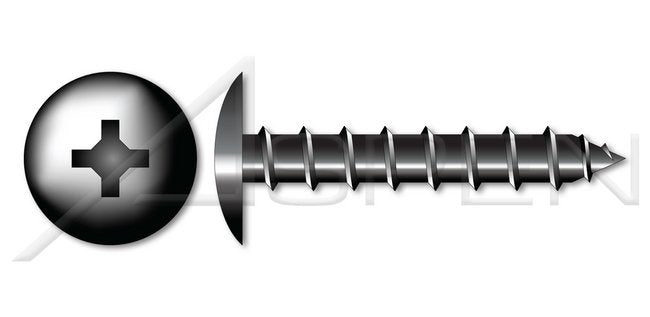

Steel Zinc Plated Truss Phillips® Drive Full Thread Hi-Lo Self-Tapping Sheet Metal Screw

Name: Steel Zinc Plated Truss Phillips® Drive Full Thread Hi-Lo Self-Tapping Sheet Metal Screw
Brand: Aspen Fasteners
SKU: SCR-11c242
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-11c242

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Sheet Metal Screws, or Self-Tapping Screws, are thread cutting fasteners designed to be driven into untapped holes. They generally require a pre-drilled pilot hole (drill size dependent on the screw diameter and material thickness). They are available with a variety of points and thread styles in order to accommodate different material thickness.

Product Specifications

Additional Information

Also known as self-tapping screws, these are mostly used in thin gauge sheet metal applications.Features HI-LO alternating high and low double-lead threading for low stress applications.HI-LO threading increases pull-out resistance and reduces cracking in plastic bosses.

Specifications Coating

Zinc Plated

Specifications Coating Color

Clear

Specifications Core Hardness Rating

Rockwell C28-C36

Specifications Drive Detail

Phillips® Type H

Specifications Drive Style

Cruciform Recess Drive

Specifications Hardness Rating

Rockwell C45-C50

Specifications Head Style

Truss Head

Specifications Material

Steel

Specifications Material Processes

Case Hardened

Specifications System Of Measurement

Inch

Specifications Threading

Hi-Lo Double-Lead Thread

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread
