SteelBridge XT Extreme Duty FCXT Series Truck Scale
SteelBridge XT Extreme Duty FCXT Series Truck Scale
SKU:TRU-72a5ad
SteelBridge XT Extreme Duty FCXT Series Truck Scale - Ideal for heavy-duty industrial weighing needs with high accuracy and durable construction.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
SteelBridge XT Extreme Duty FCXT Series Truck Scale
$18,999.99
Quantity: 1
Claim Your Seller Account
SteelBridge XT Extreme Duty FCXT Series Truck Scale
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

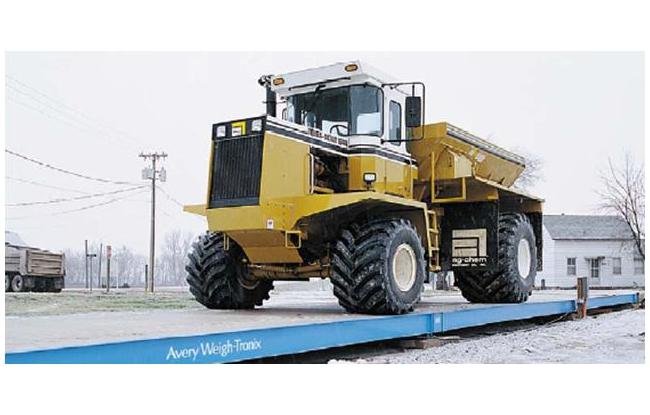

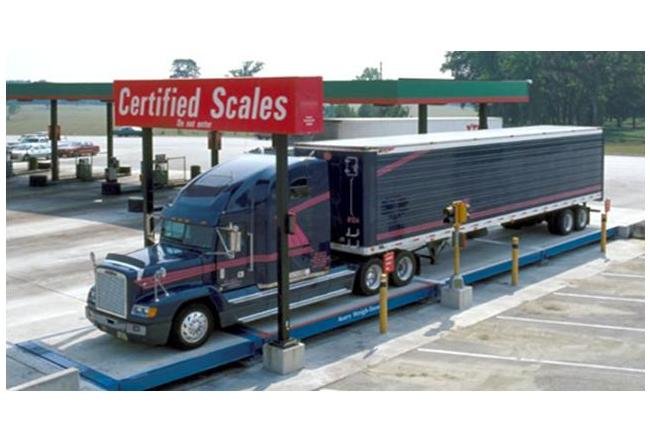

The SteelBridge XT Extreme Duty FCXT Series Truck Scale is a robust solution designed for demanding industrial applications. Featuring a concrete deck with a flat top, this Legal-for-Trade scale includes high-quality components such as 75K alloy steel Easi-Post Weigh-Bars® and stainless steel elements for durability. The pre-assembled sections streamline installation, and factory-calibrated Weigh Bars® ensure accuracy. With a concentrated load capacity (CLC) and dual tandem axle capacity (DTA) of 90,000 lb, this scale is ideal for heavy-duty weighing needs. A versatile range of optional features like stainless steel sheathed interface cables and guide posts enhances functionality to meet various requirements.
Product Specifications
Specifications Actual Platform Width
12
Specifications Capacity
200,000 lb | 100,000 kg
Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
FCXT 3012
Specifications Number Of Modules
2
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027. Refer to back page for illustration of foundation profiles. | 50' stainless steel sheathed interface cable | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614 0015 | Blue Blanket Warrenty (AWT97-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8" high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scales 12' wide or wider) | Manhole ring and cover | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034).T-Belt, EDPM Rubber, 4-1/2" x 10' (p/n AWT20-508659). T-Belt, EDPM Rubber, 4-1/2" x 11' (p/n AWT20-508660). T-Belt, EDPM Rubber, 4-1/2" x 12' (p/n AWT20-508661).
Specifications Profile
14 in
Specifications Scale Length
29 ft 7-1/4 in | 9.0 m
Specifications Shipping Weight
13,712 lb | 6,220 kg
