SteelBridge XT Extreme Duty Truck Scale
SteelBridge XT Extreme Duty Truck Scale
SKU:TRU-30f7f9
Durable and precise SteelBridge XT Extreme Duty Truck Scale for industrial weighing needs. Legal-for-Trade with robust construction for accurate measurements.
Regular price
$26,999.00
Regular price
Sale price
$26,999.00
Unit price
per
Initiate Order
SteelBridge XT Extreme Duty Truck Scale
$26,999.00
Quantity: 1
Claim Your Seller Account
SteelBridge XT Extreme Duty Truck Scale
$26,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

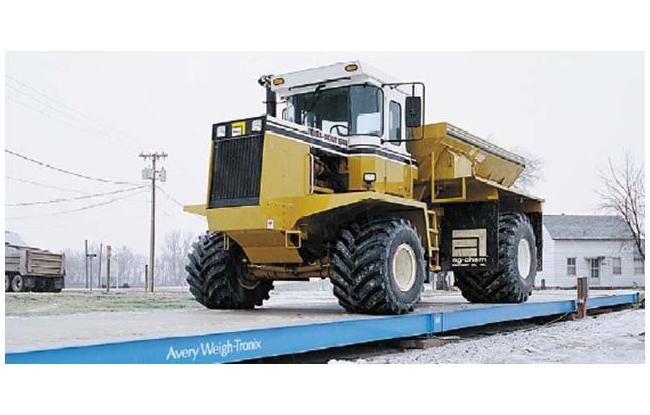

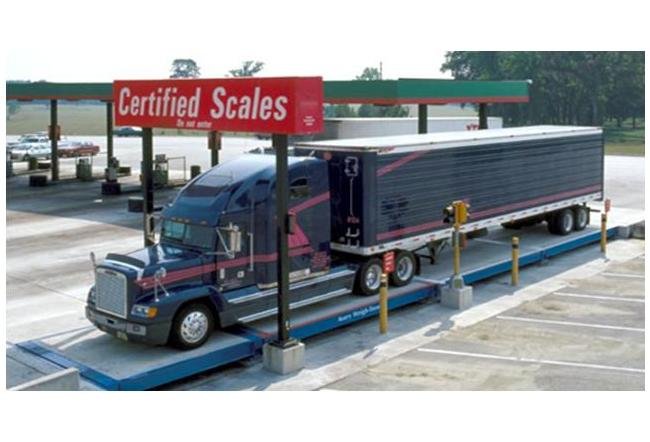

The SteelBridge XT Extreme Duty Truck Scale is engineered for maximum durability and precision weighing needs in demanding industrial environments. Featuring a concrete deck and flat top design, this Legal-for-Trade scale from the FCXT Series is equipped with 75K alloy steel Easi-Post Weigh-Bars® and stainless steel components for reliable performance. The pre-assembled sections streamline installation, with factory-calibrated weigh bars, junction boxes, and cables. With a concentrated load capacity of 90,000 lb and dual tandem axel capacity of 45,000 kg, this truck scale ensures accurate readings. Perfect for heavy-duty applications, the SteelBridge XT FCXT Series excels in longevity and performance.
Product Specifications
Specifications Actual Platform Width
11
Specifications Capacity
270,000 lb | 135,000 kg
Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
FCXT 8011
Specifications Number Of Modules
4
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027. Refer to back page for illustration of foundation profiles. | 50' stainless steel sheathed interface cable | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614 0015 | Blue Blanket Warrenty (AWT97-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8" high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scales 12' wide or wider) | Manhole ring and cover | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034).T-Belt, EDPM Rubber, 4-1/2" x 10' (p/n AWT20-508659). T-Belt, EDPM Rubber, 4-1/2" x 11' (p/n AWT20-508660). T-Belt, EDPM Rubber, 4-1/2" x 12' (p/n AWT20-508661).
Specifications Profile
14 in
Specifications Scale Length
79 ft 5-3/4 in | 24.2 m
Specifications Shipping Weight
30,120 lb | 13,662 kg
