SteelBridge XT FCXT Series Truck Scale
SteelBridge XT FCXT Series Truck Scale
SKU:TRU-ee4616
Highly durable SteelBridge XT FCXT Series Truck Scale for precise and legal-for-trade weighing in heavy-duty applications.
Regular price
$23,999.00
Regular price
Sale price
$23,999.00
Unit price
per
Initiate Order
SteelBridge XT FCXT Series Truck Scale
$23,999.00
Quantity: 1
Claim Your Seller Account
SteelBridge XT FCXT Series Truck Scale
$23,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

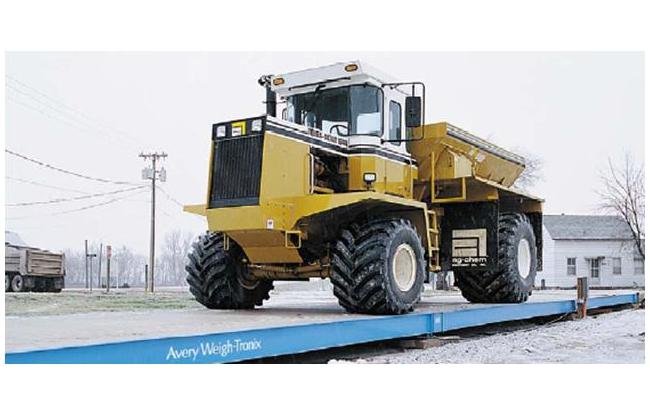

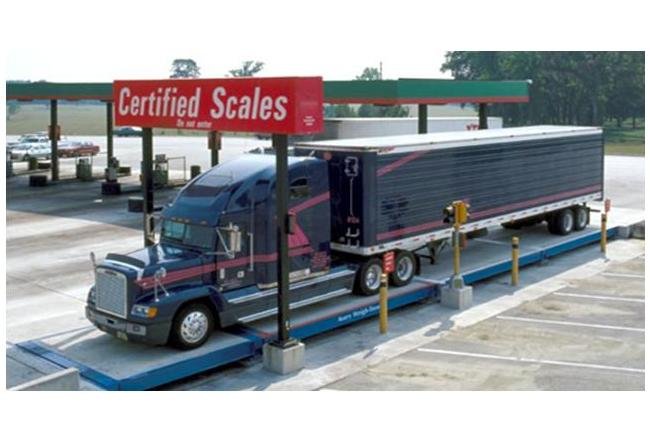

The SteelBridge XT FCXT Series Truck Scale is engineered for extreme durability and precision weighing in heavy-duty applications. With a Concrete Deck and Flat Top design, this Legal-for-Trade scale features high-quality components including 75K alloy steel Easi-Post Weigh-Bars®, stainless steel Easi-Post elements, junction boxes, surge protection, and AC line protection for optimal performance. The FCXT Series is factory calibrated for accuracy and arrives in pre-assembled sections for easy installation, meeting concentrated load capacity and dual tandem axle capacity standards. Ensure reliable weight measurements with the SteelBridge XT FCXT Series Truck Scale.
Product Specifications
Specifications Actual Platform Width
9 ft 10-1/2 in
Specifications Capacity
270,000 lb | 135,000 kg
Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
FCXT 6010
Specifications Number Of Modules
3
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027. Refer to back page for illustration of foundation profiles. | 50' stainless steel sheathed interface cable | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614 0015 | Blue Blanket Warrenty (AWT97-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8" high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scales 12' wide or wider) | Manhole ring and cover | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034).T-Belt, EDPM Rubber, 4-1/2" x 10' (p/n AWT20-508659). T-Belt, EDPM Rubber, 4-1/2" x 11' (p/n AWT20-508660). T-Belt, EDPM Rubber, 4-1/2" x 12' (p/n AWT20-508661).
Specifications Profile
14 in
Specifications Scale Length
59 ft 10-1/2 in | 18.3 m
Specifications Shipping Weight
20,985 lb | 9,519 kg
