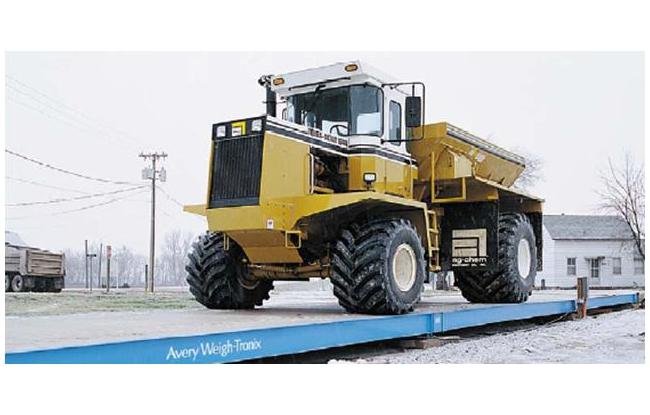

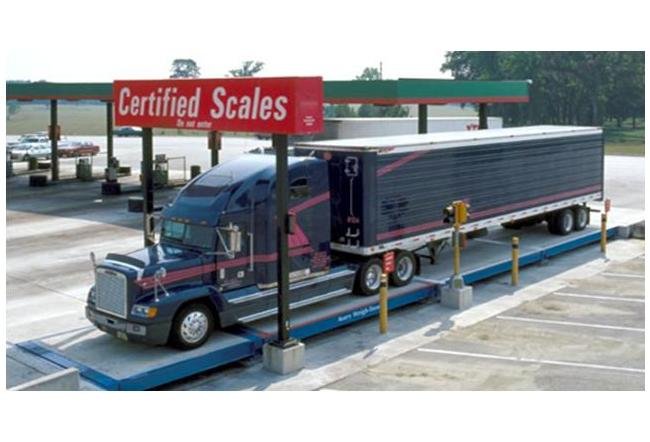

The SteelBridge XT Truck Scale FCXT Series is a durable and reliable solution for accurate weighing in heavy-duty environments. This legal-for-trade truck scale features a concrete deck with a flat top design, equipped with 75K alloy steel Easi-Post Weigh-Bars® and stainless steel components for enhanced longevity. The pre-assembled sections streamline installation, with factory-calibrated weigh bars, junction boxes, and cables. With a concentrated load capacity of 90,000 lb and dual tandem axle capacity, this scale ensures precise measurements for various applications. The included accessories like the stainless steel sheathed interface cable and surge protection enhance performance and safety, making it a robust choice that meets stringent industry standards.
Product Specifications
Specifications Actual Platform Width
12
Specifications Capacity
100,000 lb | 50,000 kg
Specifications Illustrations Of Foundation Profile
[50807-0018] - Pin & Link base plate, standard 14" profile | [50807-0034] - Pin & Link base plate, w/2" riser, (total of 16" profile) | [50807-0042] - Pin & Link base plate, w/4" riser, (total of 18" profile) | [50807-0059] - Pin & Link base plate, w/6" riser, (total of 20" profile) | [56085-0018] - Easi-Post base plate, standard 14" profile | [56145-0016] - Easi-Post base plate, w/ 2" riser, (total of 16" profile) | [56145-0024] - Easi-Post base plate, w/ 4" riser, (total of 18" profile) | [56145-0032] - Easi-Post base plate, w/ 6" riser, (total of 20" profile)
Specifications Model Number
FCXT 1212
Specifications Number Of Modules
1
Specifications Options
1" Riser Plate, (increases foundation"profile" by 1") p/n 50806-0027. Refer to back page for illustration of foundation profiles. | 50' stainless steel sheathed interface cable | Additional stainless steel sheathed interface cable (p/n 48548-0024) (Non-sheathed 50' standard cable can be substituted at the same price. Additional non-sheathed cable priced per foot - p/n 13761-0028) | Anchor bolt, nut & washer - (32 required per 70' scale) p/n 48614 0015 | Blue Blanket Warrenty (AWT97-501690) | For Multi-Platform Systems add individual model prices as required | Guide post - 6' long, 6" diameter, Schedule 40 steel pipe, painted yellow (p/n 50656-0010) | Guide rail - Bolted, powder-painted yellow, 8" high single rail(Guide rail option not suitable for shallow or deep pit foundations, never bolted on scales 12' wide or wider) | Manhole ring and cover | Special colors | Special lengths and widths | Stainless Steel, 75K Easi-Post Weigh Bars® | T - Belt, EPDM Rubber, 4-1/2" x 10' (AWT20-508659) | T - Belt, EPDM Rubber, 4-1/2" x 11' (AWT20-508660) | T - Belt, EPDM Rubber, 4-1/2" x 12" (AWT20-508661) | T-iron filler strips (10', 11' or 12' length) for gap between approach and scale end (10 ft. p/n 50898-0018, 11 ft. p/n 50898-0026, 12 ft. p/n 50898-0034).T-Belt, EDPM Rubber, 4-1/2" x 10' (p/n AWT20-508659). T-Belt, EDPM Rubber, 4-1/2" x 11' (p/n AWT20-508660). T-Belt, EDPM Rubber, 4-1/2" x 12' (p/n AWT20-508661).
Specifications Profile
14 in
Specifications Scale Length
12 ft 0 in | 3.7 m
Specifications Shipping Weight
6,541 lb | 2,967 kg
