Stelock 16.0mm Dome Head Rivet, All Steel Construction
Stelock 16.0mm Dome Head Rivet, All Steel Construction
SKU:STE-841eb2
High-strength 16.0mm dome head rivet for secure and durable fastening in industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stelock 16.0mm Dome Head Rivet, All Steel Construction
$49.99
Quantity: 1
Claim Your Seller Account
Stelock 16.0mm Dome Head Rivet, All Steel Construction
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

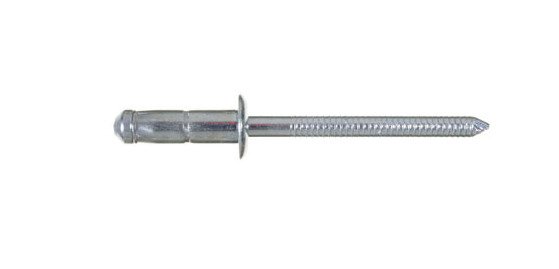

The Stelock All Steel 16.0mm Dome Head Rivet is a durable and reliable fastening solution for various applications. Constructed from low carbon steel with a zinc-plated chromium finish, this rivet offers exceptional strength and corrosion resistance. With a maximum grip range of 9.0mm and nominal shear force of 860 kgf, it provides secure fastening in demanding environments. Ideal for industrial, automotive, and construction projects, the Stelock rivet ensures sturdy connections that meet stringent performance standards.
Product Specifications
Nominal Dimensions Body Length
16.0 mm | 0.630 in
Nominal Dimensions Diameter
6.0 mm | 0.236 in
Nominal Dimensions Drillhole Size
6.1 to 6.3 mm | 0.240 to 0.248 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
9.0 mm | 0.354 in
Nominal Dimensions Minimum Grip Range
6.0 mm | 0.236 in
Nominal Forces Nominal Shear Force
860 kgf | 1895 lbf
Nominal Forces Nominal Tensile Force
550 kgf | 1210 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Stelock
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
