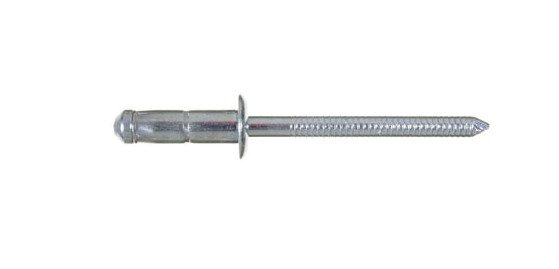

Stelock All Steel 13.0mm Dome Head Rivet
Stelock All Steel 13.0mm Dome Head Rivet
SKU:STE-4c6ba9
High-quality Stelock All Steel 13.0mm Dome Head Rivet for secure and versatile fastening applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stelock All Steel 13.0mm Dome Head Rivet
$49.99
Quantity: 1
Claim Your Seller Account
Stelock All Steel 13.0mm Dome Head Rivet
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stelock All Steel 13.0mm Dome Head Rivet is a high-quality fastening solution suitable for a wide range of applications. Manufactured with low carbon steel and zinc-plated chromium VI free finish, this rivet offers exceptional durability and corrosion resistance. With a nominal shear force of 590 kgf and a nominal tensile force of 550 kgf, it provides reliable and secure fastening. The 13.0mm body length and 6.0mm diameter make it ideal for various grip ranges, ensuring versatile usage. Meeting stringent industry standards, this rivet is a dependable choice for both consumer and institutional buyers.
Product Specifications
Nominal Dimensions Body Length
13.0 mm | 0.512 in
Nominal Dimensions Diameter
6.0 mm | 0.236 in
Nominal Dimensions Drillhole Size
6.1 to 6.3 mm | 0.240 to 0.248 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.80 mm | 0.071 in
Nominal Dimensions Mandrel Diameter
4.0 mm | 0.157 in
Nominal Dimensions Maximum Grip Range
6.0 mm | 0.236 in
Nominal Dimensions Minimum Grip Range
3.0 mm | 0.118 in
Nominal Forces Nominal Shear Force
590 kgf | 1300 lbf
Nominal Forces Nominal Tensile Force
550 kgf | 1210 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Stelock
Technical Specs Carton Quantity
2500
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
