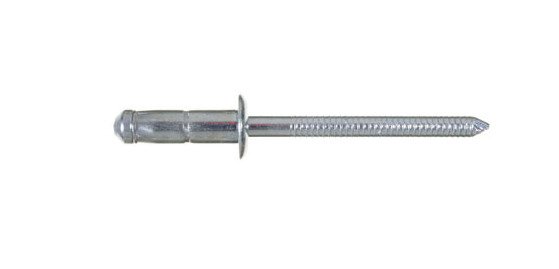

The Stelock All Steel 7.7mm Dome Head Rivet is a premium fastening solution designed for industrial and construction applications. Made from low carbon steel with a zinc-plated chromium finish, it offers exceptional strength and corrosion resistance. With a body length of 7.7mm and nominal shear force of 250kgf, this rivet provides reliable and secure connections. Ideal for a wide range of projects, this rivet meets stringent federal procurement standards and is a dependable choice for government and institutional buyers.
Product Specifications
Nominal Dimensions Body Length
7.7 mm | 0.303 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.12 mm | 0.162 in
Nominal Dimensions Head Diameter
7.7 mm | 0.303 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.57 mm | 0.101 in
Nominal Dimensions Maximum Grip Range
3.0 mm | 0.118 in
Nominal Dimensions Minimum Grip Range
1.0 mm | 0.039 in
Nominal Forces Nominal Shear Force
250 kgf | 550 lbf
Nominal Forces Nominal Tensile Force
285 kgf | 627 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Stelock
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
