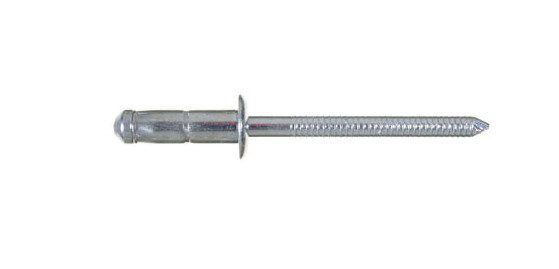

Stelock All Steel Dome Head Rivet 11.3mm
Stelock All Steel Dome Head Rivet 11.3mm
SKU:STE-76a9fb
High-quality Stelock Dome Head Rivet for strong and durable fastening solutions. Ideal for various applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Stelock All Steel Dome Head Rivet 11.3mm
$45.99
Quantity: 1
Claim Your Seller Account
Stelock All Steel Dome Head Rivet 11.3mm
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stelock All Steel Dome Head Rivet with a body length of 11.3mm is a reliable fastening solution for various applications. Made from low carbon steel with a zinc-plated chromium VI free finish, this rivet offers excellent corrosion resistance. With a nominal shear force of 428 kgf and nominal tensile force of 387 kgf, it ensures strong and durable connections. The dome head design adds a professional look to the finished project, making it ideal for both industrial and DIY projects.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Nominal Dimensions Body Length
11.3 mm | 0.445 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.1 mm | 0.197 to 0.200 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
3.05 mm | 0.120 in
Nominal Dimensions Maximum Grip Range
6.0 mm | 0.236 in
Nominal Dimensions Minimum Grip Range
3.5 mm | 0.138 in
Nominal Forces Nominal Shear Force
428 kgf | 942 lbf
Nominal Forces Nominal Tensile Force
387 kgf | 851 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Stelock
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
