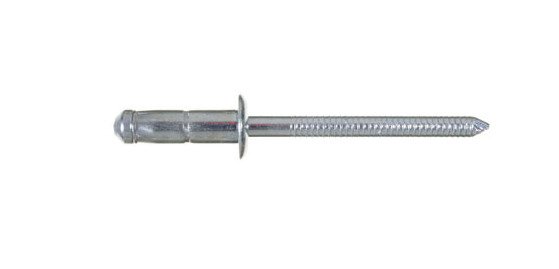

Stelock All Steel Dome Head Rivet, 12.7mm Body Length
Stelock All Steel Dome Head Rivet, 12.7mm Body Length
SKU:STE-dc7b43
Secure fastening with Stelock Rivet, 12.7mm body length, high tensile force, and low carbon steel construction.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Stelock All Steel Dome Head Rivet, 12.7mm Body Length
$34.99
Quantity: 1
Claim Your Seller Account
Stelock All Steel Dome Head Rivet, 12.7mm Body Length
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stelock All Steel Dome Head Rivet ensures secure fastening with its low carbon steel body and zinc-plated chromium (Cr) VI free finish. Featuring a 12.7mm body length and a high tensile force of 285kgf, this rivet meets stringent procurement standards for durability and reliability. Ideal for a wide range of applications requiring precision and strength.
Product Specifications
Nominal Dimensions Body Length
12.7 mm | 0.500 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.12 mm | 0.162 in
Nominal Dimensions Head Diameter
7.7 mm | 0.303 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.57 mm | 0.101 in
Nominal Dimensions Maximum Grip Range
7.0 mm | 0.276 in
Nominal Dimensions Minimum Grip Range
5.0 mm | 0.197 in
Nominal Forces Nominal Shear Force
420 kgf | 995 lbf
Nominal Forces Nominal Tensile Force
285 kgf | 627 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Stelock
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
