Stelock All Steel Dome Head Rivet 8.8mm Body Length
Stelock All Steel Dome Head Rivet 8.8mm Body Length
SKU:STE-02cea5
Sturdy and reliable Stelock Dome Head Rivet for secure fastening applications. Nominal shear force of 367 kgf & tensile force of 387 kgf.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Stelock All Steel Dome Head Rivet 8.8mm Body Length
$99.99
Quantity: 1
Claim Your Seller Account
Stelock All Steel Dome Head Rivet 8.8mm Body Length
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

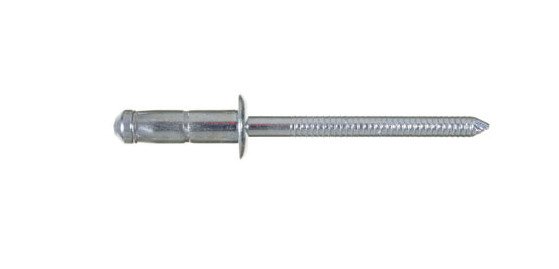

The Stelock All Steel Dome Head Rivet features a sturdy construction with a low carbon steel body and zinc plated chromium VI-free finishes. With a diameter of 4.8mm and a body length of 8.8mm, this rivet offers excellent performance in various applications. It provides a nominal shear force of 367 kgf and a nominal tensile force of 387 kgf, ensuring reliable fastening strength. Ideal for industrial and institutional use, this rivet meets stringent procurement standards.
Product Specifications
Nominal Dimensions Body Length
8.8 mm | 0.346 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 to 5.1 mm | 0.197 to 0.200 in
Nominal Dimensions Head Diameter
9.3 mm | 0.366 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
3.05 mm | 0.120 in
Nominal Dimensions Maximum Grip Range
3.5 mm | 0.138 in
Nominal Dimensions Minimum Grip Range
1.5 mm | 0.059 in
Nominal Forces Nominal Shear Force
367 kgf | 807.4 lbf
Nominal Forces Nominal Tensile Force
387 kgf | 851 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Stelock
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
