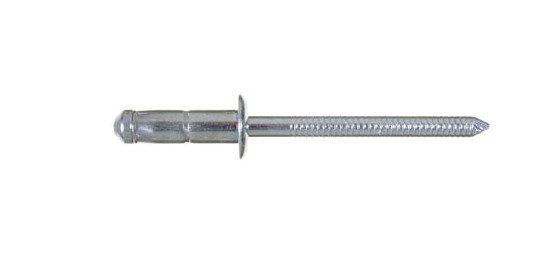

Stelock All Steel Dome Head Rivet, 9.7mm Body Length
Stelock All Steel Dome Head Rivet, 9.7mm Body Length
SKU:STE-7a6e22
Durable Stelock All Steel Dome Head Rivet for heavy-duty applications. Low carbon steel with zinc-plated finish, 9.7mm body length, and high force tolerance. Ideal for industrial, construction, and automotive use.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Stelock All Steel Dome Head Rivet, 9.7mm Body Length
$45.99
Quantity: 1
Claim Your Seller Account
Stelock All Steel Dome Head Rivet, 9.7mm Body Length
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

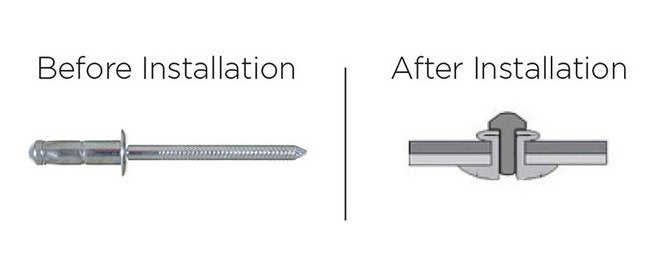

The Stelock All Steel Dome Head Rivet is a durable fastening solution designed for heavy-duty applications. With a low carbon steel body and zinc-plated chromium (Cr) VI free finish, this rivet ensures corrosion resistance and longevity. The 9.7mm body length and 7.7mm head diameter provide secure and robust connections, capable of withstanding nominal shear forces of 360kgf and tensile forces of 285kgf. Ideal for industrial, construction, and automotive use, this rivet offers high performance and reliability.
Product Specifications
Nominal Dimensions Body Length
9.7 mm | 0.382 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.12 mm | 0.162 in
Nominal Dimensions Head Diameter
7.7 mm | 0.303 in
Nominal Dimensions Head Thickness
1.30 mm | 0.051 in
Nominal Dimensions Mandrel Diameter
2.57 mm | 0.101 in
Nominal Dimensions Maximum Grip Range
5.0 mm | 0.197 in
Nominal Dimensions Minimum Grip Range
3.0 mm | 0.118 in
Nominal Forces Nominal Shear Force
360 kgf | 970 lbf
Nominal Forces Nominal Tensile Force
285 kgf | 627 lbf
Technical Specs Body Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Body Material
Low Carbon Steel
Technical Specs Brands
Ornit | Stelock
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Carbon Steel
