STF Series 4.4mm Micron Tee Filter
STF Series 4.4mm Micron Tee Filter
SKU:STF-d6767a
Ensure system purity with the STF Series 4.4mm Micron Tee Filter's precision filtration and durable construction.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
STF Series 4.4mm Micron Tee Filter
$89.99
Quantity: 1
Claim Your Seller Account
STF Series 4.4mm Micron Tee Filter
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The STF Series 4.4mm Micron Tee Filter is a precision-engineered solution designed for robust filtration needs in various systems. With an orifice size of 4.4mm and 1/4in MNPT inlet end connections, this filter offers reliable particle removal functionality. Crafted from durable 316 Stainless Steel and Brass, it ensures longevity and performance. The sintered filter element provides an effective filtration area of 1.3in² | 830 mm², maintaining system cleanliness. Operating at maximum pressures of 6000 psi | 414 bar and temperatures ranging from -40 to 250ºF | -40 to 121ºC, this filter excels in demanding environments. Easy maintenance is facilitated as the filter element is replaceable without body removal.
Product Specifications
Features Features
Remove system particulate contaminantsThe filter element can be replaced without removing the body in the systemReplaceable sintered filter element
Note Note

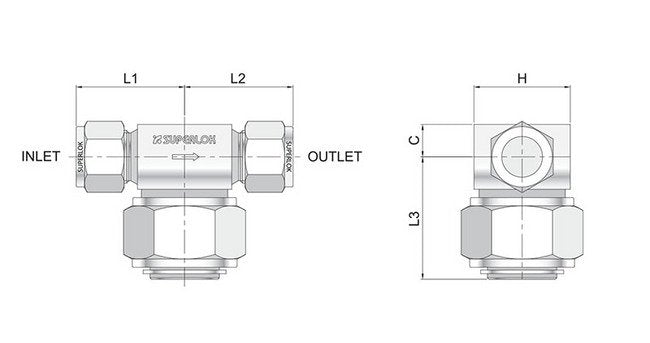

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension C
9.7 mm
Technical Specs Dimension H
27.0 mm
Technical Specs Dimension L1
27.7 mm
Technical Specs Dimension L2
27.7 mm
Technical Specs Dimension L3
43.4 mm
Technical Specs Inlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
6000 psi | 414 bar
Technical Specs Operating Temperature Range
-40 to 250 ºF | -40 to 121 ºC
Technical Specs Orifice Size
4.4 mm
Technical Specs Outlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Sintered Effective Filtration Area
1.3 in² | 830 mm²
