STF Series 6.4mm Micron Tee Filter with MNPT Inlet
STF Series 6.4mm Micron Tee Filter with MNPT Inlet
SKU:STF-43e61f
High-performance STF Series 6.4mm Micron Tee Filter for precise filtration.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
STF Series 6.4mm Micron Tee Filter with MNPT Inlet
$149.99
Quantity: 1
Claim Your Seller Account
STF Series 6.4mm Micron Tee Filter with MNPT Inlet
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

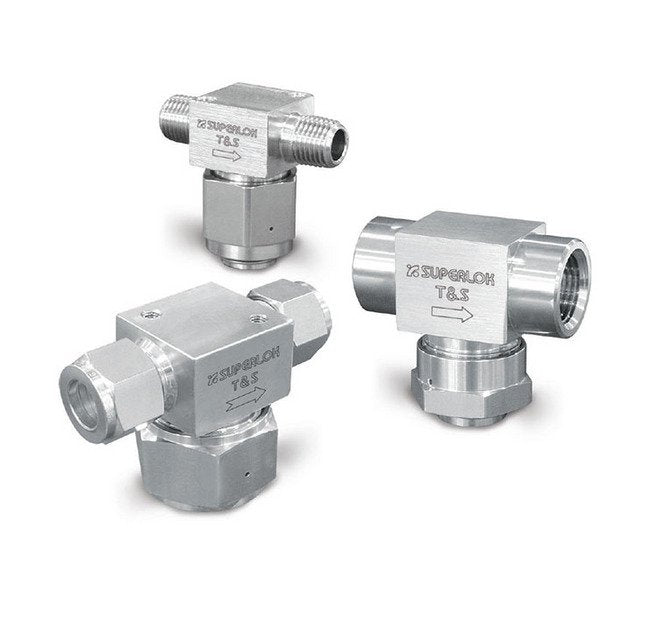

The STF Series 6.4mm Micron Tee Filter is crafted for precision filtration in demanding environments. Featuring a 6.4mm orifice size and 3/8 in. MNPT inlet end connections, this filter boasts a durable body made of 316 stainless steel or brass. With a sintered effective filtration area of 2.0 in² or 1280 mm², it efficiently removes system particulate contaminants. The filter element is easily replaceable without the need to remove the body, ensuring hassle-free maintenance. Operating at a maximum pressure of 6000 psi and a temperature range of -40 to 250°F, this filter excels in both performance and durability.
Product Specifications
Features Features
Remove system particulate contaminantsThe filter element can be replaced without removing the body in the systemReplaceable sintered filter element
Note Note

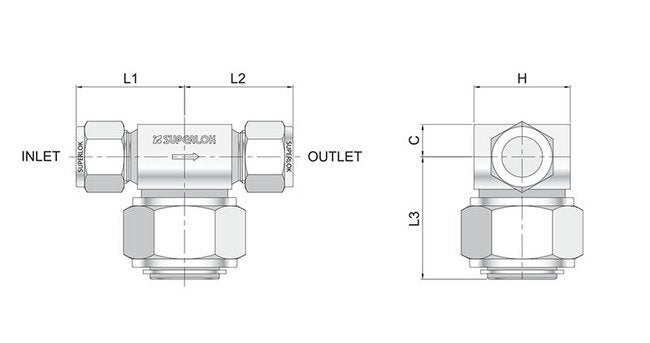

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension C
11.7 mm
Technical Specs Dimension H
34.0 mm
Technical Specs Dimension L1
31.2 mm
Technical Specs Dimension L2
31.2 mm
Technical Specs Dimension L3
44.2 mm
Technical Specs Inlet End Connections
3/8 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
6000 psi | 414 bar
Technical Specs Operating Temperature Range
-40 to 250 ºF | -40 to 121 ºC
Technical Specs Orifice Size
6.4 mm
Technical Specs Outlet End Connections
3/8 in. Male National Pipe Thread (MNPT)
Technical Specs Sintered Effective Filtration Area
2.0 in² | 1280 mm²
