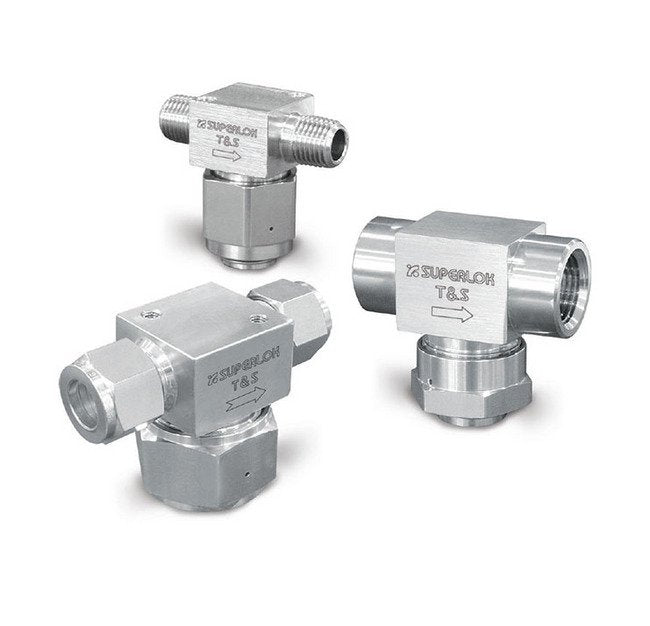

STF Series Micron Tee Filter 4.4mm Orifice, 1/8" FNPT Inlet
STF Series Micron Tee Filter 4.4mm Orifice, 1/8" FNPT Inlet
SKU:STF-d8d867
STF Series 4.4mm Tee Filter - Efficiently removes contaminants, durable construction, easy maintenance
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
STF Series Micron Tee Filter 4.4mm Orifice, 1/8" FNPT Inlet
$99.99
Quantity: 1
Claim Your Seller Account
STF Series Micron Tee Filter 4.4mm Orifice, 1/8" FNPT Inlet
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The STF Series Micron Tee Filter features a precise 4.4mm orifice size and 1/8" Female National Pipe Thread (FNPT) inlet connections, designed for efficient particulate contaminant removal. Constructed with durable 316 Stainless Steel or Brass, this filter offers a sintered effective filtration area of 1.3 in² or 830 mm². With a maximum operating pressure of 6000 psi and an operating temperature range from -40 to 250ºF, it ensures reliable performance in diverse industrial settings. Easily replaceable filter elements make maintenance hassle-free, enhancing system longevity and efficiency.
Product Specifications
Features Features
Remove system particulate contaminantsThe filter element can be replaced without removing the body in the systemReplaceable sintered filter element
Note Note

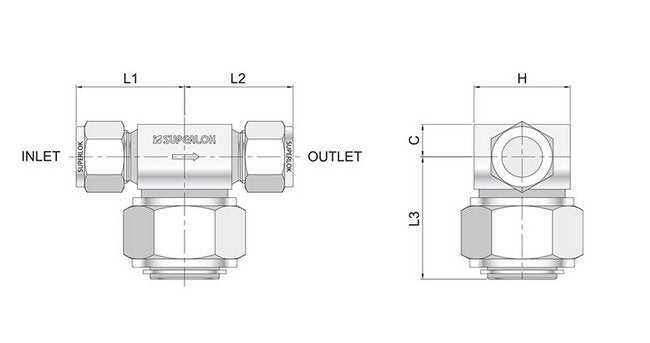

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension C
9.7 mm
Technical Specs Dimension H
27.0 mm
Technical Specs Dimension L1
25.9 mm
Technical Specs Dimension L2
25.9 mm
Technical Specs Dimension L3
43.4 mm
Technical Specs Inlet End Connections
1/8 in. Female National Pipe Thread (FNPT)
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
6000 psi | 414 bar
Technical Specs Operating Temperature Range
-40 to 250 ºF | -40 to 121 ºC
Technical Specs Orifice Size
4.4 mm
Technical Specs Outlet End Connections
1/8 in. Female National Pipe Thread (FNPT)
Technical Specs Sintered Effective Filtration Area
1.3 in² | 830 mm²
