STF Series Micron Tee Filter - 6.4mm Orifice, 1/2" MNPT Inlet
STF Series Micron Tee Filter - 6.4mm Orifice, 1/2" MNPT Inlet
SKU:STF-2e164d
Efficient STF Series Micron Tee Filter for industrial use, 6.4mm orifice, durable materials, easy maintenance.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
STF Series Micron Tee Filter - 6.4mm Orifice, 1/2" MNPT Inlet
$159.99
Quantity: 1
Claim Your Seller Account
STF Series Micron Tee Filter - 6.4mm Orifice, 1/2" MNPT Inlet
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

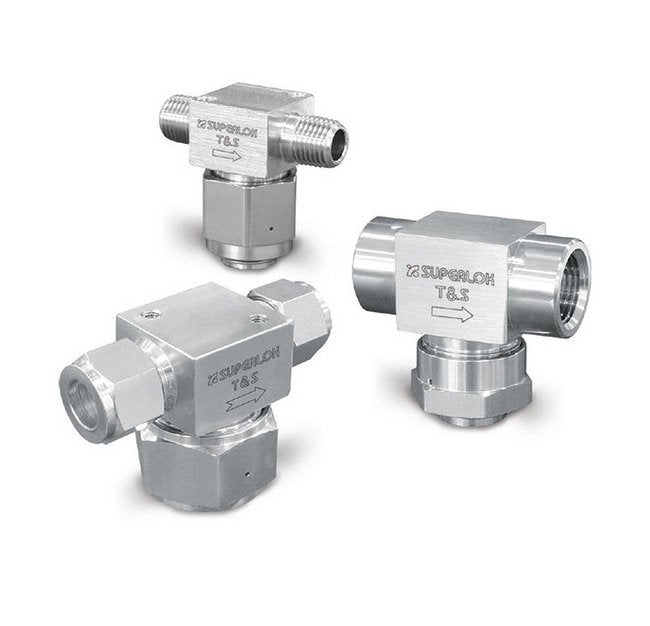

The STF Series Micron Tee Filter is a robust filtration solution designed for precision performance in industrial settings. With an orifice size of 6.4mm and 1/2" MNPT Male National Pipe Thread inlet connections, this filter ensures efficient removal of system particulate contaminants. Crafted from high-quality 316 Stainless Steel and Brass, it offers durability and reliability. The replaceable sintered filter element allows for easy maintenance without system disassembly. With a maximum operating pressure of 6000 psi and an operating temperature range of -40 to 250°F, this filter excels in demanding environments, providing exceptional filtration without compromising flow rates.
Product Specifications
Features Features
Remove system particulate contaminantsThe filter element can be replaced without removing the body in the systemReplaceable sintered filter element
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass

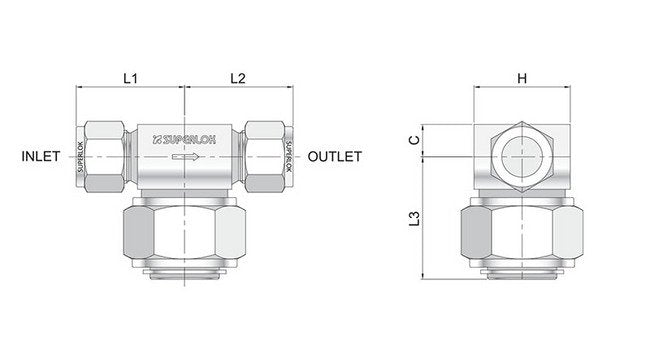

Technical Specs Dimension C
11.7 mm
Technical Specs Dimension H
34.0 mm
Technical Specs Dimension L1
36.1 mm
Technical Specs Dimension L2
36.1 mm
Technical Specs Dimension L3
44.2 mm
Technical Specs Inlet End Connections
1/2 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
6000 psi | 414 bar
Technical Specs Operating Temperature Range
-40 to 250 ºF | -40 to 121 ºC
Technical Specs Orifice Size
6.4 mm
Technical Specs Outlet End Connections
1/2 in. Male National Pipe Thread (MNPT)
Technical Specs Sintered Effective Filtration Area
2.0 in² | 1280 mm²
