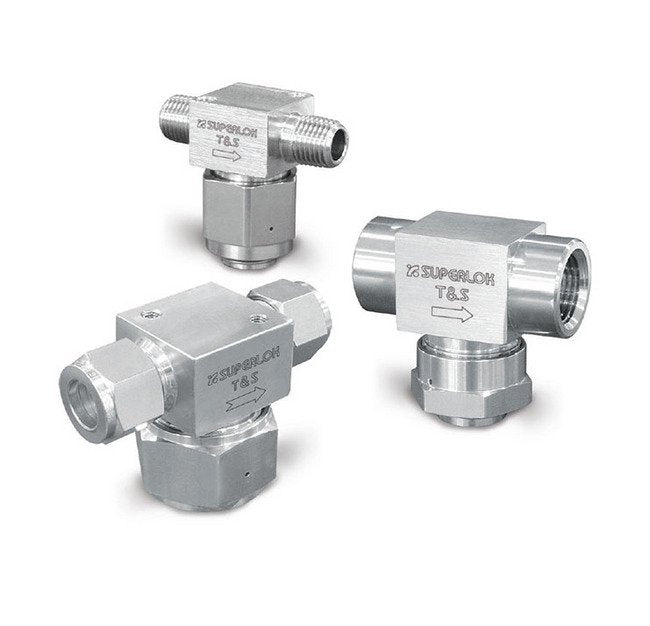

STF Series Micron Tee Filter - 6.4mm Orifice, 3/8 in. SUPERLOK®
STF Series Micron Tee Filter - 6.4mm Orifice, 3/8 in. SUPERLOK®
SKU:STF-d6cb59
High-performance STF Series Micron Tee Filter - 6.4mm Orifice, 3/8 in. SUPERLOK®. Remove system contaminants efficiently.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
STF Series Micron Tee Filter - 6.4mm Orifice, 3/8 in. SUPERLOK®
$249.99
Quantity: 1
Claim Your Seller Account
STF Series Micron Tee Filter - 6.4mm Orifice, 3/8 in. SUPERLOK®
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The STF Series Micron Tee Filter features a precise 6.4mm orifice size and 3/8 inch SUPERLOK® inlet end connections, making it ideal for removing system particulate contaminants effectively. Crafted from 316 Stainless Steel and Brass, this filter offers a sintered effective filtration area of 2.0 in² | 1280 mm², ensuring reliable performance. With a maximum operating pressure of 6000 psi and operating temperatures ranging from -40 to 250ºF, this filter is durable and versatile. Its replaceable sintered filter element allows for easy maintenance without system downtime. Experience superior filtration with the STF Series Micron Tee Filter.
Product Specifications
Features Features
Remove system particulate contaminantsThe filter element can be replaced without removing the body in the systemReplaceable sintered filter element
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass

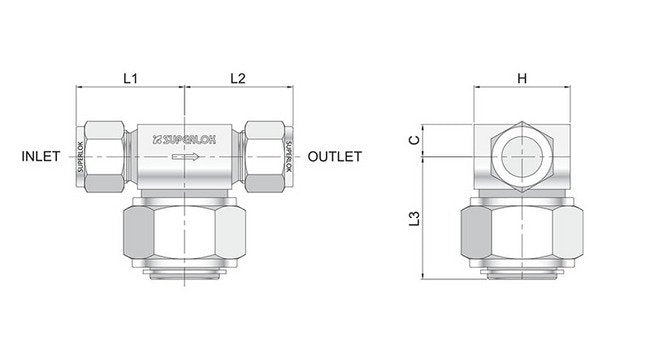

Technical Specs Dimension C
11.7 mm
Technical Specs Dimension H
34.0 mm
Technical Specs Dimension L1
36.3 mm
Technical Specs Dimension L2
36.3 mm
Technical Specs Dimension L3
44.2 mm
Technical Specs Inlet End Connections
3/8 in. SUPERLOK®
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
6000 psi | 414 bar
Technical Specs Operating Temperature Range
-40 to 250 ºF | -40 to 121 ºC
Technical Specs Orifice Size
6.4 mm
Technical Specs Outlet End Connections
3/8 in. SUPERLOK®
Technical Specs Sintered Effective Filtration Area
2.0 in² | 1280 mm²
